HDMI/ARC Adapter
07171 87 12 0
Product

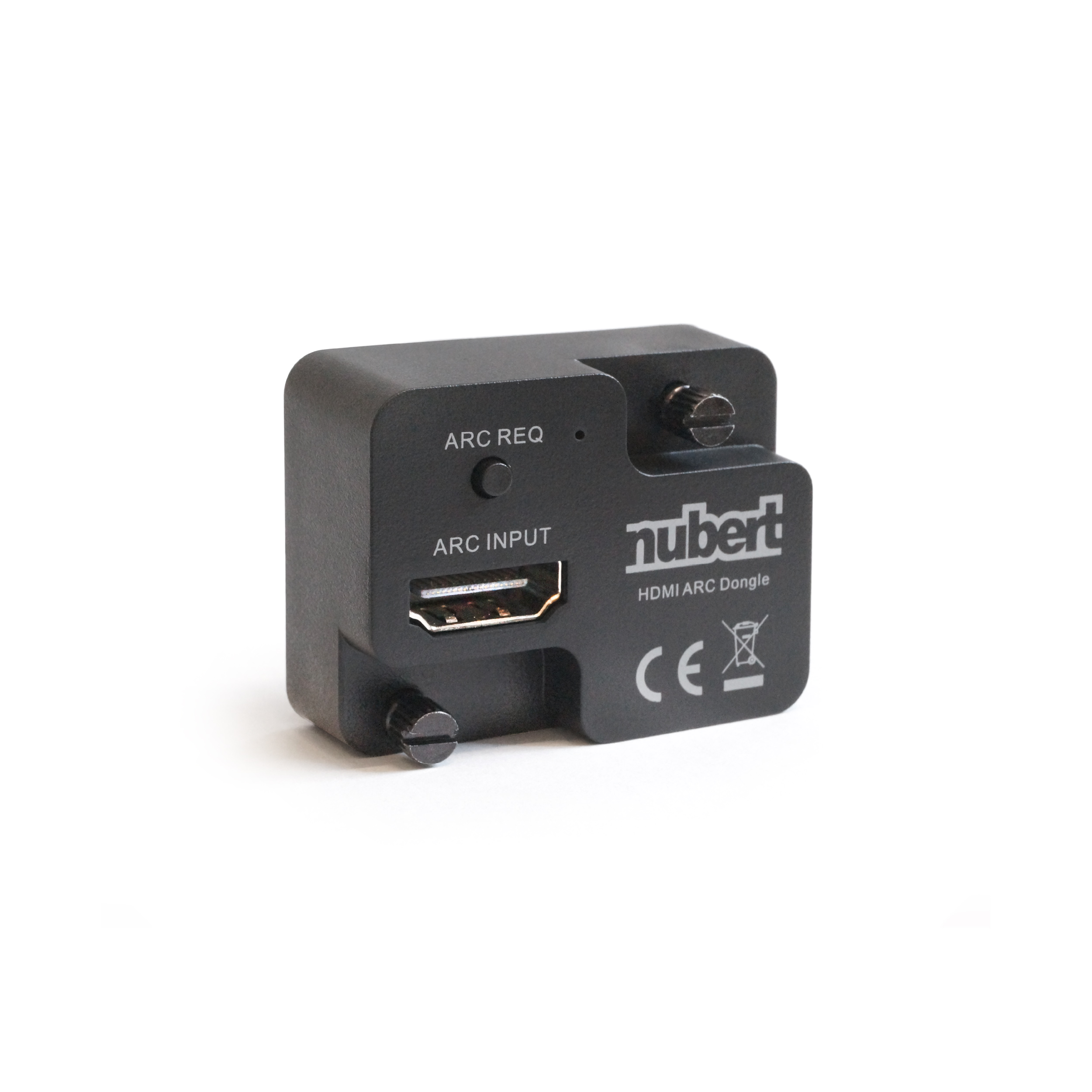

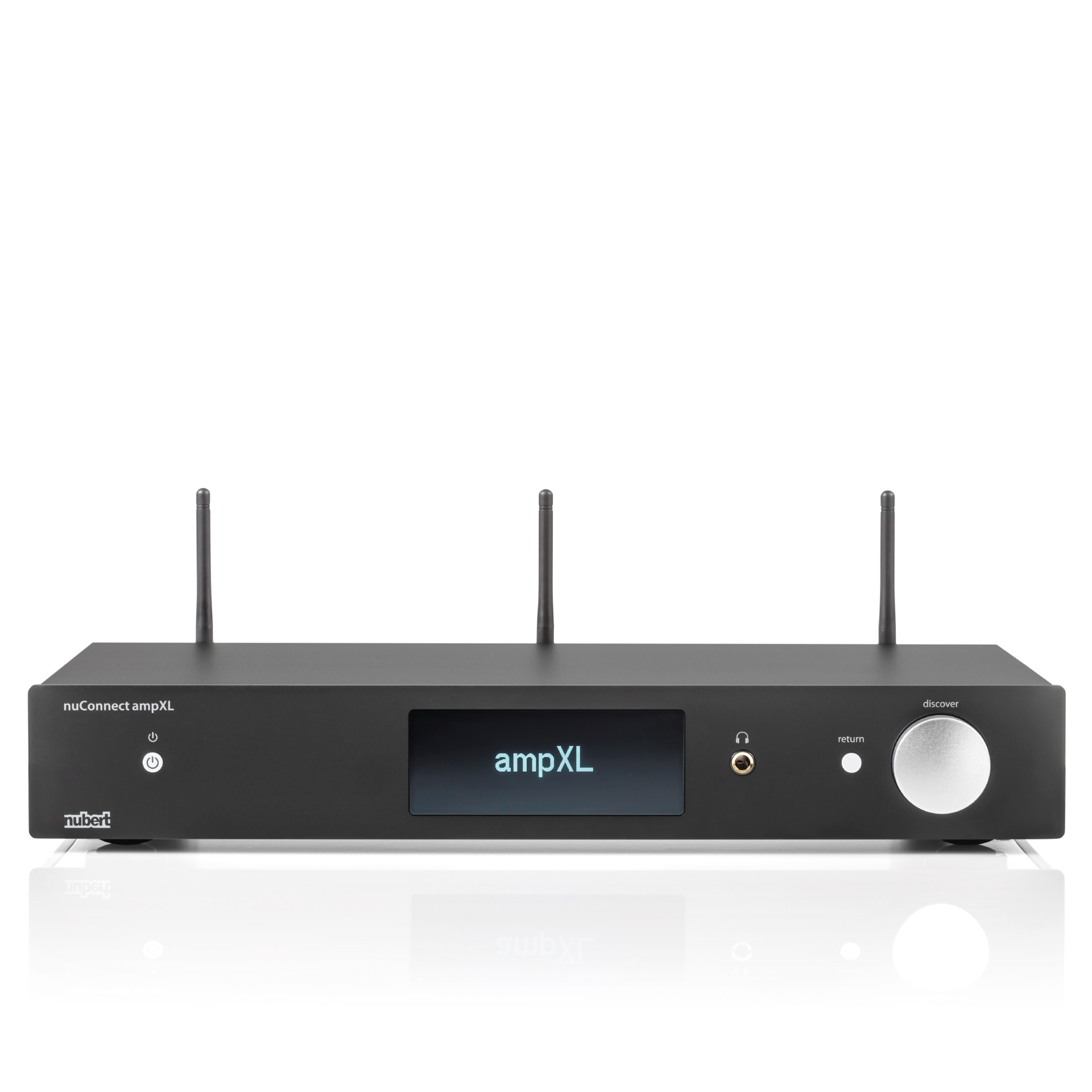

The Nubert HDMI ARC adapter is HDMI CEC compatible. It extracts an analogue audio signal from the HDMI data stream and allows sound regulation as well as switching on and off via the TV remote control. This saves having to use several signal transmitters. The adapter is ideal for integrating the TV into the home stereo setup via the new nuConnect ampXL integrated amplifier.

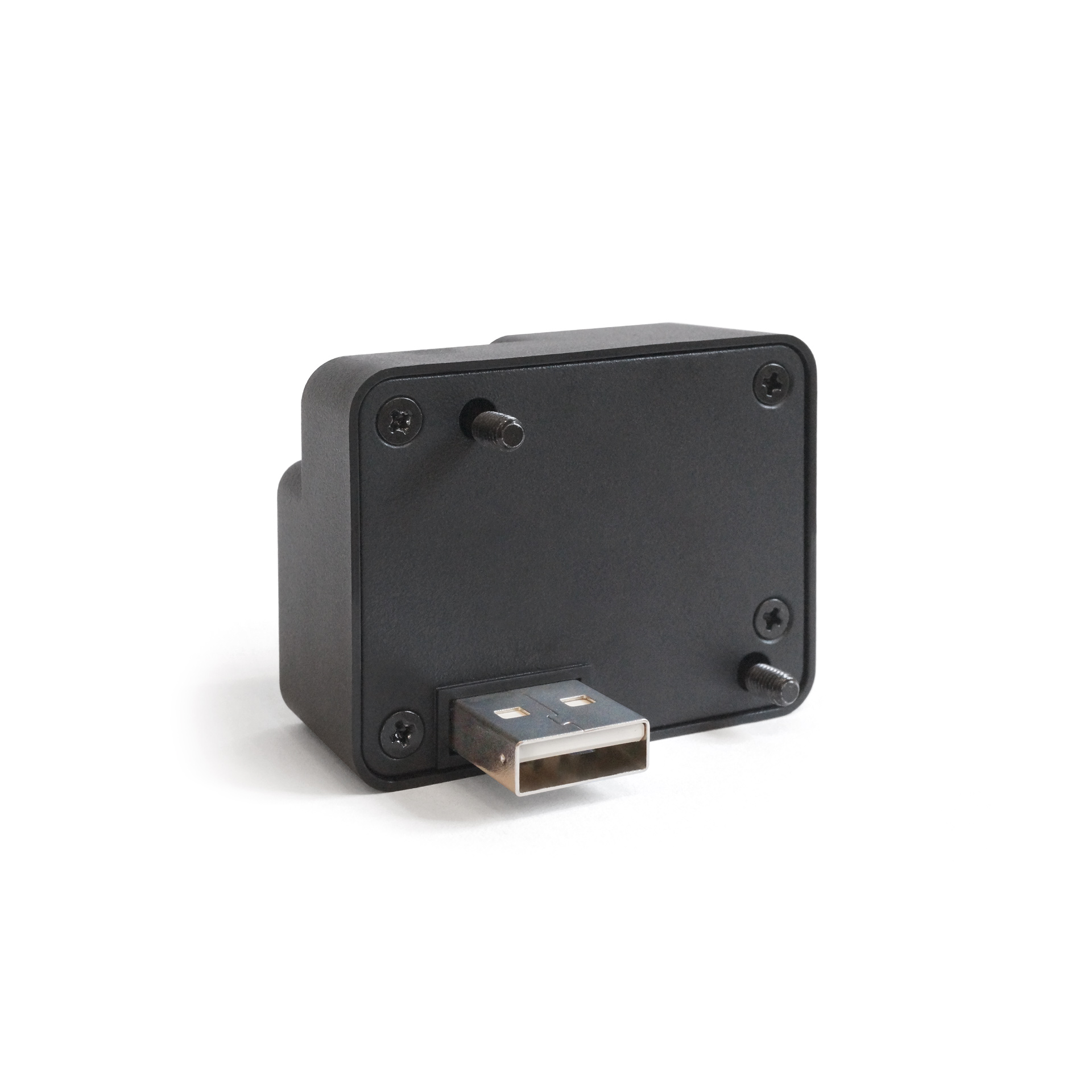

The Nubert HDMI-ARC adapter is simply plugged into the USB socket of the nuControl ampXL and connected to the HDMI-ARC port of the TV set with an (optionally available) HDMI cable. On the TV, the audio format output must be set from Bitstream to LPCM. The audio signal must be output in stereo in PCM format. A corresponding option can be found in the system or audio menu of most TV models. If necessary, please refer to the operating instructions of the TV set to see to what extent the sound output can be set accordingly.
Safety Instructions
Nubert electronic GmbH
Nubertstraße 1, 73529 Schwäbisch Gmünd, Deutschland
Email: info@nubert.de Phone: +49 07171 - 8712-0
The product is intended exclusively for private and internal use by commercial and governmental users. Maintenance or repairs on the product may only be carried out by workshops authorized by Nubert.
Risk of Suffocation!
Never leave children unattended with the packaging or the product! There is a risk that children could get entangled in the packaging film and suffocate. Ensure that children cannot detach small parts! These parts could be swallowed and lead to suffocation. In case any parts are swallowed, contact a doctor immediately!
Risk of Injury or Damage!
When moving the product, do so with the necessary caution to avoid injuries and damage!
Caution!
An unstable placement or mounting location can cause damage. Place the product only on a flat, stable surface and ensure it cannot be knocked over! Alternatively, mount the product exactly as specified in the installation instructions.
Caution!
Excessive heat exposure, UV radiation, or moisture can cause damage.
- Never place burning candles or similar open flames on the product!
- Do not expose this product to direct sunlight!
- Use the product only in a dry location!
CAUTION
To completely disconnect this device from the power supply, please unplug the power cord from the wall outlet. The power plug is used to completely disconnect the device from the power supply; it must remain easily accessible for the user.
WARNINGS
- Avoid high temperatures. Ensure proper ventilation if the device is placed on a shelf.
- Handle the power cord carefully. Always hold the plug when unplugging the cord.
- Keep the device away from moisture, water, and dust.
- If the device will not be used for an extended period, disconnect the power cord from the outlet.
- Do not cover the ventilation area.
- Do not allow foreign objects to enter the device.
- Keep the device away from insecticides, gasoline, or thinners.
- Never attempt to disassemble or modify the device.
- Ensure ventilation is not obstructed by objects such as newspapers, tablecloths, curtains, etc.
- Do not place any open flames, such as lit candles, on the device.
- Please follow local environmental regulations when disposing of batteries.
- The device must not be exposed to dripping or splashing liquids.
- Do not place any containers filled with liquid, such as vases, on the device.
- Do not handle the power cord with wet or damp hands.
- When the switch is in the OFF-STANDBY position, the device is not completely disconnected from the mains.
- The device should be positioned near a power outlet to ensure easy access to the power supply.
- Do not store the battery in a location exposed to direct sunlight or extremely high temperatures, such as near a heater.
- Do not forcibly bend the plug when connecting the device and the micro-USB/USB cable.
CAUTION (For Amplifiers): Hot Surface. Do Not Touch.
The surface above the internal heatsink may become hot when this product is operated for extended periods. Do not touch hot areas, particularly near the "Hot Surface Mark" and on the top surface.
