nuLine WS-14
Available, delivery time: 1-3 working days
€325.00
07171 87 12 0
Product
nuLine WS-14

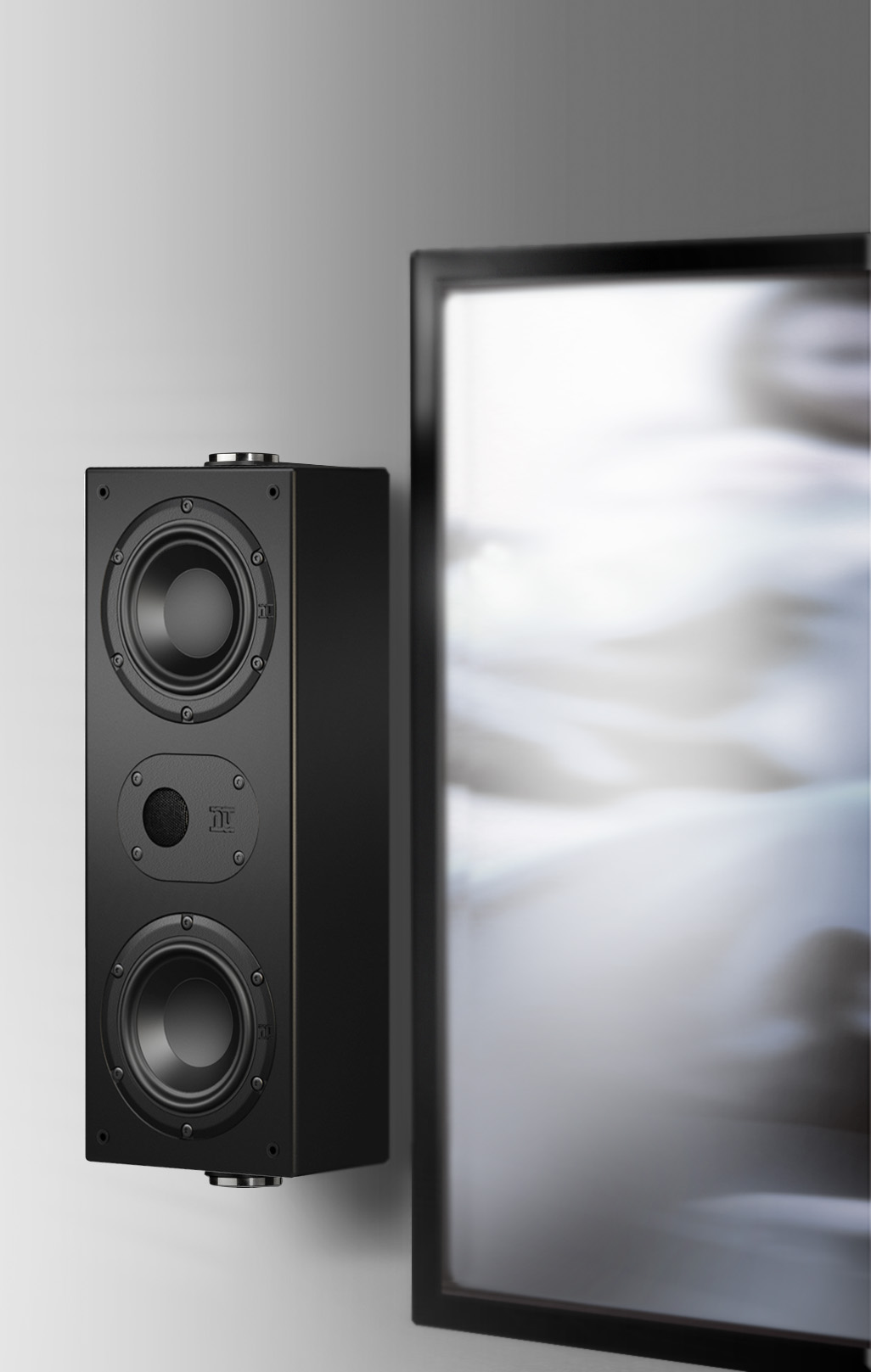

- Neutral wall-mounted loudspeaker for compact systems and surround systems, with closed cabinet
- Extremely slim speaker with 10 cm depth and direct wall-mounting option on the rear panel
- Can be used as a centre for homogeneous multi-channel sets with small space requirements
- Can be used as ceiling speakers for Dolby Atmos with the WH-10 wall bracket
- Convincing with sound selector switch, bi-wiring terminal and asymmetrical tweeter
- Made in Germany with clear edges, nobly lacquered and with removable metal grid
All-purpose loudspeaker
The nuLine WS-14 is a closed universal speaker. It is suitable for on-wall or ceiling mounting with the WH-10 wall bracket. With a cabinet depth of only 10 cm, it blends in unobtrusively anywhere and provides good sound almost invisibly. Especially in home cinema, it allows for a maximum homogeneous setup as a satellite.
Made for stereo
The nuLine WS-14 also allows you to access a tuning for a free set-up through the sound switches. This makes stereo an experience, especially with a nuSub model.
At home in the home cinema
An ideal homogeneous home cinema consists of identical loudspeakers. Due to its tuning for horizontal and vertical operation, the nuLine WS-14 is ideal as a satellite. Subwoofer tip? nuSub XW-700.
Ceiling solution
In combination with our WH-10 wall bracket, the nuLine WS-14 becomes even more flexible and can also be mounted on the ceiling for Dolby Atmos setups.
Complete in a set
With the matching nuConnect ampX amplifier, the nuLine WS-14 becomes a customisable and modern system with sufficient power. Our other sets are also more than worth a look.
Details
nuOva B tweeter
With the nuLine WS-14, the tweeter is separated at 2400 Hz. The nuOva tweeter is a sophisticated high-tech product that has been optimised for minimal resonance. The main reason for this is the damped rear volume chamber, which ensures very fast decay. Your advantage: More details and a clear reproduction of music.
Low-midrange speaker
The bass-midrange drivers of the nuLine WS-14 work seamlessly below the tweeter. They enable detailed voice reproduction and rich low frequencies. Thanks to longstroke technology and an optimised cabinet, the wall-mounted speaker achieves a lower cut-off frequency of 100 Hz with wall mounting or 119 Hz with free-standing installation with high precision. Your advantage: Full-quality music reproduction with a small footprint.
Crossover
The crossover is the control centre and heart of the nuLine WS-14. Durable components ensure accurate reproduction and linear sound for decades. The switches on the back directly influence the crossover, allowing seamless switching between sound modes. In addition, the crossover has self-resetting fuses that protect the drivers from overload.
Closed construction
The compact and enclosed design allows the speaker to be mounted directly on a wall or ceiling. The specially tuned crossover adjusts the sound accordingly. This makes the nuLine WS-14, especially in combination with the WH-10 wall bracket, a true universal solution for surround systems. This way, you can achieve maximum homogeneity with identical speakers.
Colours
Our nuLine series relies on the high-quality lacquer finishes black and white, which are applied in several layers and sanded again and again for a perfect surface finish with a softline edge. The third option is a real highlight: the real wood veneer in walnut. This makes each model truly unique, just as with our limited Corten Edition to celebrate the 10th anniversary of our constantly improving nuLine series.
Design
In the nuLine series, clear shapes with delicate softline curves give the models a timeless elegance. Acoustic considerations are also at the forefront of the design process, as slightly rounded edges ensure less edge dispersion, as does the asymmetrical arrangement of the tweeters. This is matched by the elaborately calculated metal grille, which has hardly any measurable effect on the sound.
Series overview
Our nuLine series is not only Made in Germany, but also committed to honest sound: All speakers reproduce music neutrally and thus exactly as it was recorded. What's more, with 10 models in this series, we have the widest variety for all applications, from wall or ceiling speakers, compact and floorstanding speakers to the Dolby Atmos-certified add-on speaker nuLine RS-54. Low-frequency support is provided for all of them by subwoofers from the nuSub-Series.
Committed to honest sound
We are a German company that has been developing loudspeakers and selling them directly for over 45 years. We stand for neutral reproduction, so that you receive exactly the signal that is present on the source. We add nothing and leave nothing out. That's a promise! You can find more information about our philosophy here.
Production sites
All nuVero models were perfected by our developers in Schwäbisch Gmünd. Series production then takes place exclusively for us at the Roterring manufacturing plant in North Rhine-Westphalia. This means that our nuVero series speakers are rightly labelled Designed & Made in Germany.
Test results
We are awarded. And proud of it.
Accessories
We not only build exceptional loudspeakers and electronics, but also offer the matching accessories. So you can find everything useful for our products, from cables to adapters.
Our recommendations
Not the right one? We recommend taking a look at related products that you might like.
FAQ's
Questions about passive speakers
You buy the product, then it arrives at your home and you can test it for 30 days without risk. If you don't like the product, you can return it free of charge and we will refund the total amount including all shipping costs.
In most cases, a quick look at the instruction manual is enough to solve many problems very quickly. We are happy to help you via phone +497171-87120, WhatsApp or E-Mail. according to the motto "It doesn't sound, it doesn't exist". Because for us, good service is part of the product.
Reviews
Login
Honest speakers - Honest reviews
Satisfied? Or can we do something better with our products? Then write us your review. Simply log in to your account and write the review of your order here.
Here with us, every review is checked for authenticity and is then approved. So you can be sure that the feedback you give us about our products is genuine.
22 February 2021
Universally applicable
Whether as a center, surround speaker, or as a complete surround system with subwoofer support, it's all possible with this speaker. In my case, it was used in an existing surround system from the nuVero series, as a height speaker (Dolby Atmos, DTS:X). And even if you first doubt whether such a mixture is good for the uniform sound, these negative thoughts evaporate very quickly as soon as the first sounds from above. It even fits together super. I can only recommend this great speaker!
10 July 2020
nuLine Surroundspeaker
The "small" comes along not so small, sonically excellent, I currently operate 2x nuVero 4 plus 4 WS-14 two 2x as Atmos, 2 x rear [...]
12 June 2020
nuLine WS-14
nubert in the motorhome!?! as a long-time user of a nuline surround system in the home theater, i put the small rear speakers in the motorhome for testing. wow - finally great music reproduction! unfortunately, the form factor was not so satisfying, because they build too low... thereupon ordered the small nubox 103 speakers, which fit better in terms of dimensions, but in contrast to the nuline could not score. quickly discovered the nuline ws-14, which fit perfectly with their small depth. the nuboxes went back and the nuline play with a small 12-volt amplifier (with TPA3116D2 chip, can what!) really big and potent. in front of it as a player/streamer a raumfeld connector with flanged hard drive and so i have my entire and extensive music collection with me. never would I have thought to listen to music so well in my mobile home (and I'm really spoiled at home) - certainly not the intended use of nubert but a result and setup which is definitely worth trying out in optical and acoustic relationship! thanks to nubert for the opportunity to try out the different boxes in the unfamiliar environment - otherwise no decision would have been possible.
25 March 2020
nuLine WS-14
Great workmanship of the boxes, super sound. The wall mount is practical and nobly processed. Always happy to work with you
Technical information
Device type: | Universal loudspeaker |
---|---|
Width: | 38,5 cm |
Height: | 15,0 cm |
Depth: | 10,5 cm |
Depth (additional information): | 11,5 cm (with front cover) |
Weight: | 5,0 kg |
Packaging dimensions (W x H x D): | 49,0 cm x 20,0 cm x 30,0 cm |
Packaging dimensions pair packaging (W x H x D): | 49,0 cm x 40,0 cm x 30,0 cm |
Shipping weight: | 6,5 kg |
Shipping weight pair packaging: | 13,0 kg |
Standard colour: | Black |
Color: | Multi-coat Lacquer Black |
Scope of delivery: | nuLine WS-14, metal cover, elastic bumper for decoupling and non-slip stand, speaker cable 2x 0.75 mm² 4 m, operating instructions in German |
EAN / GTIN: | 4260166751895 |
Country of origin: | Germany |
WEEE-Reg. No.: | DE 48888173 |
Construction Method: | Closed |
Construction: | Direct radiator |
System: | 2-way |
Tweeter: | 1x 19 mm |
Tweeter material: | Silk fabric |
Tweeter crossover frequency: | 2.400 Hz |
Bass-midrange driver: | 1x 123 mm |
Bass-midrange material: | Polypropylene |
Lower cut-off frequency (-3 dB): | 119 Hz (free-standing) 100 Hz (wall-mounted) |
Upper cut-off frequency (-3 dB): | 27,000 Hz (free-standing) 27,000 Hz (wall-mounted) |
Lower cut-off frequency (-6 dB): | 97 Hz |
Upper cut-off frequency (-6 dB): | 30.000 Hz |
Efficiency (2.83V/1m): | 88,5 dB |
Efficiency (1W/1m): | 85,5 dB |
Continuous load capacity: | 170 W |
Pulse load capacity: | 270 W |
Shielding: | Magnetically compensated |
Impedance: | 4 Ohm |
Protection: | Self-resetting fuses |
Tone selector switch Treble: | Yes |
Loudspeaker inputs: | 1 |
Bass/treble control: | Sound selector switch |
Box type and recommended use
The special feature of the slim nuLine WS-14 is that it can be operated as a wall-mounted speaker, but also free-standing. A switchable crossover tuning ensures a highly neutral sound image at all times. Especially when used as a wall-mounted speaker, the WS-14 can be placed inconspicuously, for example next to a flat screen. This speaker can also be used as a centre or rear speaker in an ambitious surround system, and its compact dimensions help to solve many a set-up problem. The lower cut-off frequency of the WS-14 (below 100 Hz/-6 dB) harmonises perfectly with a subwoofer such as the nuSub XW-700. In terms of sound, this combination comes very close to a large floorstanding speaker; in terms of the "massiveness" of the sound image, it can even surpass some floorstanding speakers. The speakers of the nuLine series are developed in Schwäbisch Gmünd and manufactured according to our specifications at a traditional specialist company for sound furniture construction in Germany.
Construction principle and housing
Two-way loudspeaker in closed design. The elaborately crafted cabinet is made of multi-layer lacquered MDF material and is manufactured by an experienced sound furniture specialist in Germany. Two threaded bushings (M8) on the front sides and a keyhole suspension device on the rear of the cabinet allow for easy wall mounting.
Tweeter
Through the consistent further development of proven tweeter drivers, it was possible to realise a driver that achieves unprecedented qualities in this price class. A characteristic of the nuOva design is the asymmetrical front panel. This allows the tweeter to be positioned significantly off-centre on the baffle, reducing edge refraction effects. In addition, the tweeter has a rear chamber with specially tuned volume and damping material to absorb sound and prevent resonance. To achieve an optimal result, the damping material, its position and especially the shape of the chamber must be precisely matched. Especially here, the nuLine WS-14 benefited from the Nubert engineers' many years of experience in developing first-class tweeters.
Woofer
The two 12-centimetre long-stroke woofers fitted in the WS-14 are closely related to the drivers of the nuLine 264 and CS-174 models. These high-tech drivers enable an optimum ratio of large cone excursion, maximum bass response and amplifier-friendly efficiency. This is how highly resilient long-stroke woofers were created, whose polypropylene cones can deflect up to 20 mm in extreme cases. With these woofers, despite the compact enclosure, a lower cut-off frequency can be achieved that enables an acoustically problem-free coupling to our subwoofers.
Crossover and switching options
The crossover of the nuLine WS-14 is enormously complex for such a small speaker. To meet the different acoustic requirements of wall-mounted or free-standing installation, the crossover of the WS-14 can be switched between "free-standing" and "wall-mounted". Another switch allows for additional adjustment of the high-frequency range. Here you can choose between a neutral and a brilliant high-frequency tuning, which allows the speaker to be individually adapted to different living rooms with more or less textile sound damping or personal listening preferences. A protection circuit watches over the safety of the two drivers and the crossover. If there is a risk of thermal overload, it cuts the amplifier current and then automatically resets itself to normal operation.
Connection terminal
On the back of the WS-14 wall speaker is the sturdy connection terminal with gold-plated metal screw terminals that are suitable for speaker cables with a cross-section of up to 6 mm². This terminal also houses the switches for position selection and tweeter adjustment.
Wall mounting
The nuLine WS-14 is prepared for vertical wall mounting with a keyhole suspension device on the back. In the Nubert accessories range we also offer the colour-matching, shapely and very stable wall bracket WH-10. It is mounted via two threaded bushes on the front of the speaker and allows the speaker to be tilted or swivelled around the longitudinal axis, depending on its use.
Ceiling mounting
With the matching WH-10 wall bracket, the WS-14 is also recommended as a ceiling speaker in a Dolby Atmos system with height channels. As with wall mounting, check in advance whether the surface can safely support the speaker and bracket.
More info in Technology
For all technically interested music and home cinema lovers who are not put off by hard facts and metrological details, Günther Nubert's ""Technik satt"" offers plenty of technical correlations and electro-acoustic background knowledge as well as the topic of sound optimisation and insights into the development and history of Nubert loudspeakers and devices.
