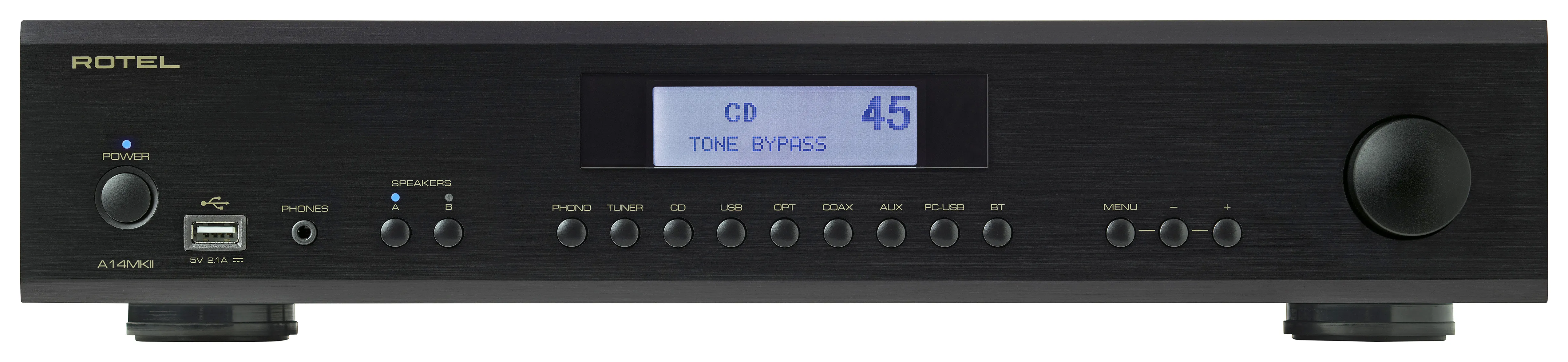

Rotel A14MKII
Available, delivery time: 1-3 working days *
€1,299.00
07171 87 12 0
Product
A14MKII
The A14MKII is the top-of-the-line model in the Rotel 14 Series, delivering 80 watts in AB mode into 8 ohms, powered by Rotel's proprietary oversized toroidal transformer and four high-efficiency slit-foil capacitors for high acoustic performance without ever sounding strained.
The completely redesigned digital-to-analog conversion circuit topology uses a 32-bit/384 kHz D/A converter from Texas Instruments. The entire circuitry has been carefully tuned and all critical components are hand selected for a fuller, richer and more balanced reproduction of your music. Improvements to the power supply and amplifier stages ensure even more detailed reproduction, whether you're listening to a big band or a solo singer.
The tone control offers bass and treble adjustment in 1 dB steps up to +/- 10 dB for individual adaptation to all music styles, moods and listening situations. The BYPASS mode eliminates unwanted noise and distortion.
The A14MKII supports your favorite music sources, including analog, digital, PC-USB with MQA, wireless streaming via aptX™ and AAC Bluetooth with high quality and for vinyl fans there is even an MM phono input.
The A14MKII is Roon-certified and delivers an optimal listening experience with the Roon software, allowing you to devote yourself entirely to your music.
Integration into control systems is possible via Ethernet, RS-232, 12 V trigger and infrared.
Dual speaker outputs with universal terminals allow installations with 2 zones. Speaker outputs A and B are switched via relays. The graphic display on the front panel has a large volume display and provides information on the audio stream.
The A14MKII fits into any environment and guarantees many hours of music enjoyment.
(Source: www.rotel.com)
Safety Instructions
ATRAUDIO-TRADE Hi-Fi Vertriebsgesellschaft mbH
Wallufer Straße 2, 65343 Eltville am Rhein, Deutschland
Email: rotel@audiotra.de Phone: +49 208 882 66-0
Downloads
Technical Information
| Device type: | Stereo integrated amplifier |
|---|---|
| Width: | 43,0 cm |
| Height: | 9,3 cm |
| Depth: | 34,5 cm |
| Weight: | 8,94 kg |
| Shipping weight: | 12,0 kg |
| Power consumption in standby mode: | 0,5 W |
| Maximum power input: | 280 W |
| Standard colour: | Black |
| Color: | Black |
| Scope of delivery: | A14MKII, remote control, quick start guide, mains cable |
| Min - Max impedance: | 4-8 Ohm |
| Continuous power: | 2x 150 W into 4 ohms / 2x 80 W into 8 ohms |
| Remote control: | IR remote control |
| Operation on the device: | Keys |
| Digital coaxial inputs: | 2 |
| Digital optical inputs: | 2 |
| USB inputs: | 1x USB type A, 1x USB type B |
| Bluetooth: | Yes |
| Phono input: | 1 (MM) |
| Audio cinch inputs: | 4 |
| Headphone outputs: | 1x 3.5 mm jack |
| Audio Pre-Out: | 1 |
| Loudspeaker outputs: | 4 (pair A+B) |
| Bluetooth codec: | aptX HD, AAC |
| Trigger outputs: | 2x 12 V mini jack |
