Rotel RA-1592MKII

Comfort, performance, and design

Whether you are a discerning audiophile or just an occasional music listener, times have never been better for music lovers. The Rotel RA-1592MKII will surprise you with its high fidelity, performance, and quality that previously seemed unthinkable at this price point. Rediscover your music with exceptional detail and impressive clarity!

The RA-1592MKII integrated amplifier incorporates innovations, signal path optimizations, and enhancements to key power supply components for breathtaking performance with dynamic range, perfect rhythm, and pinpoint timing.

With Rotel amplifier topology and its award-winning power amplifier technology, the RA-1592MKII is compact yet uncompromising. Behind the 200 watts per channel into 8 ohms and the rich, deep, and precise bass reproduction is Rotel's own toroidal transformer and silicon capacitors.

The RA-1592MKII supports a wide range of audio sources, including analog, XLR, digital, wireless aptX™ and AAC Bluetooth®, PC USB with MQA and 32-bit/384 kHz PCM, as well as an MM phono input. Digital-to-analog conversion is performed by a premium D/A converter from Texas Instruments with a precisely tuned filter for outstanding detail and a wide soundstage with accurate localization.

The RA-1592MKII is Roon Tested and, with Roon software, delivers an optimal listening experience that allows you to fully immerse yourself in your music.

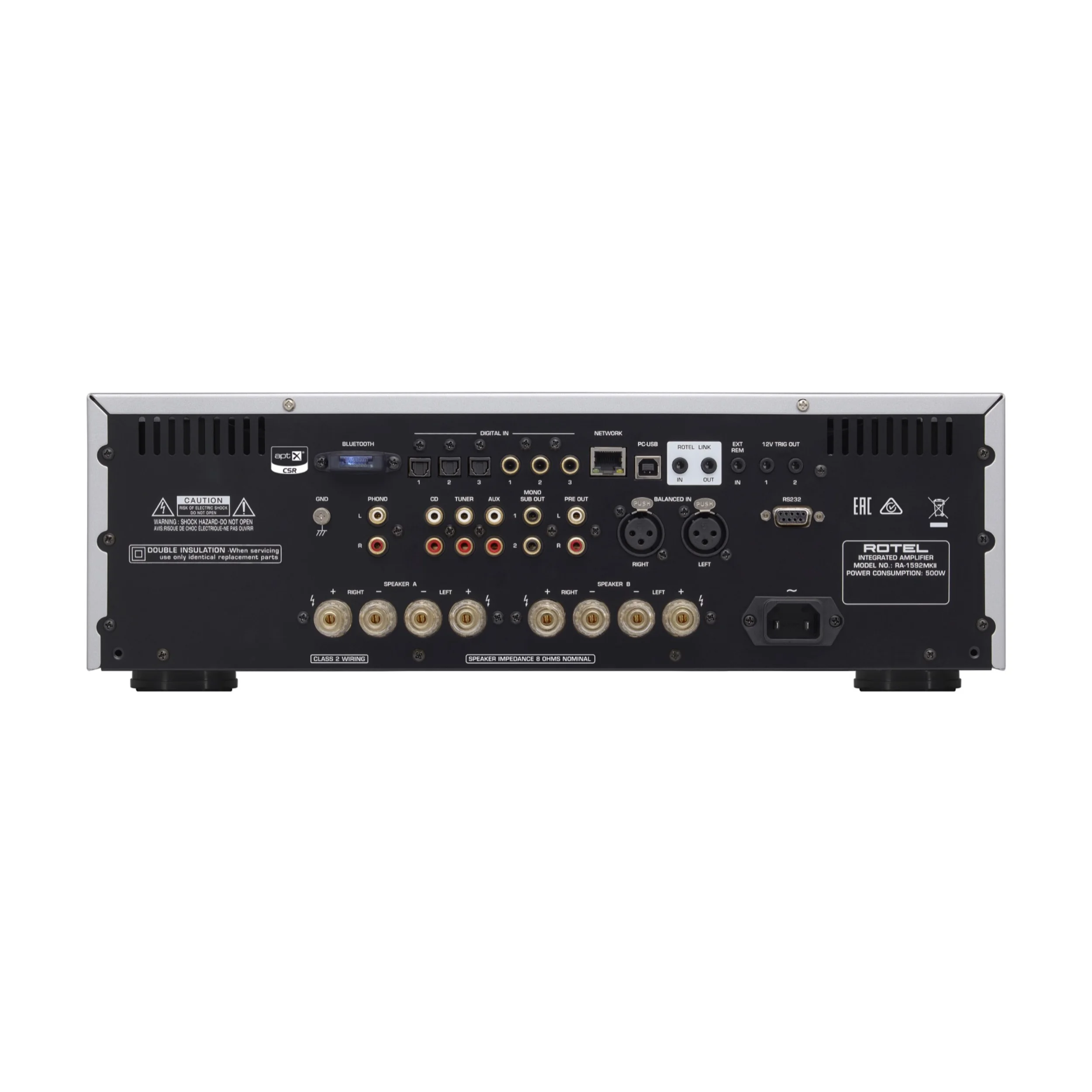

Individually switchable A-B speaker outputs, RS-232, Ethernet, and 12V triggers ensure seamless integration into control systems.

Features

• Analog inputs
  • 3 x Line In RCA/Cinch
  • 1 x MM phono input
  • 1 x balanced XLR line input
• Digital inputs
  • 3 x SPDIF coaxial
  • 3 x SPDIF optical
  • 1 x USB-B
  • Bluetooth® with aptX™ HD and AAC
• Outputs
  • 2 x subwoofer out (mono)
  • 2 x speaker outputs (A+B) for banana plugs and spade connectors
  • 2 x 12 V trigger outputs
• 1 x connection for external remote control
• 2 x Rotel Link (in/out)
• 1 x LAN (data only)
• 1 x RS232 (data only)

Technical

• Maximum power: 350 W/ch (4Ω)
• Continuous power: 200 W/ch (8Ω)
• Distortion factor: < 0.008%
• Frequencyresponse
  • High-level inputs: 10 Hz - 100 kHz, ±0.5 dB
  • Digital inputs: 10 Hz - 90 kHz, ±2 dB
  • Phono input: 20 Hz - 20 kHz, ±0.5 dB
• Signal-to-noise ratio (HF "A")
  • High-level inputs: 103 dB
  • Digital inputs: 102 dB
  • Phono input: 80 dB
• Dimensions (W x H x D): 431 x 144 x 425 mm
• Power consumption during operation: 500 W
• Power consumption in standby mode: < 0.5 W
• Weight: 17.6 kg
