nuVero nova 9
07171 87 12 0

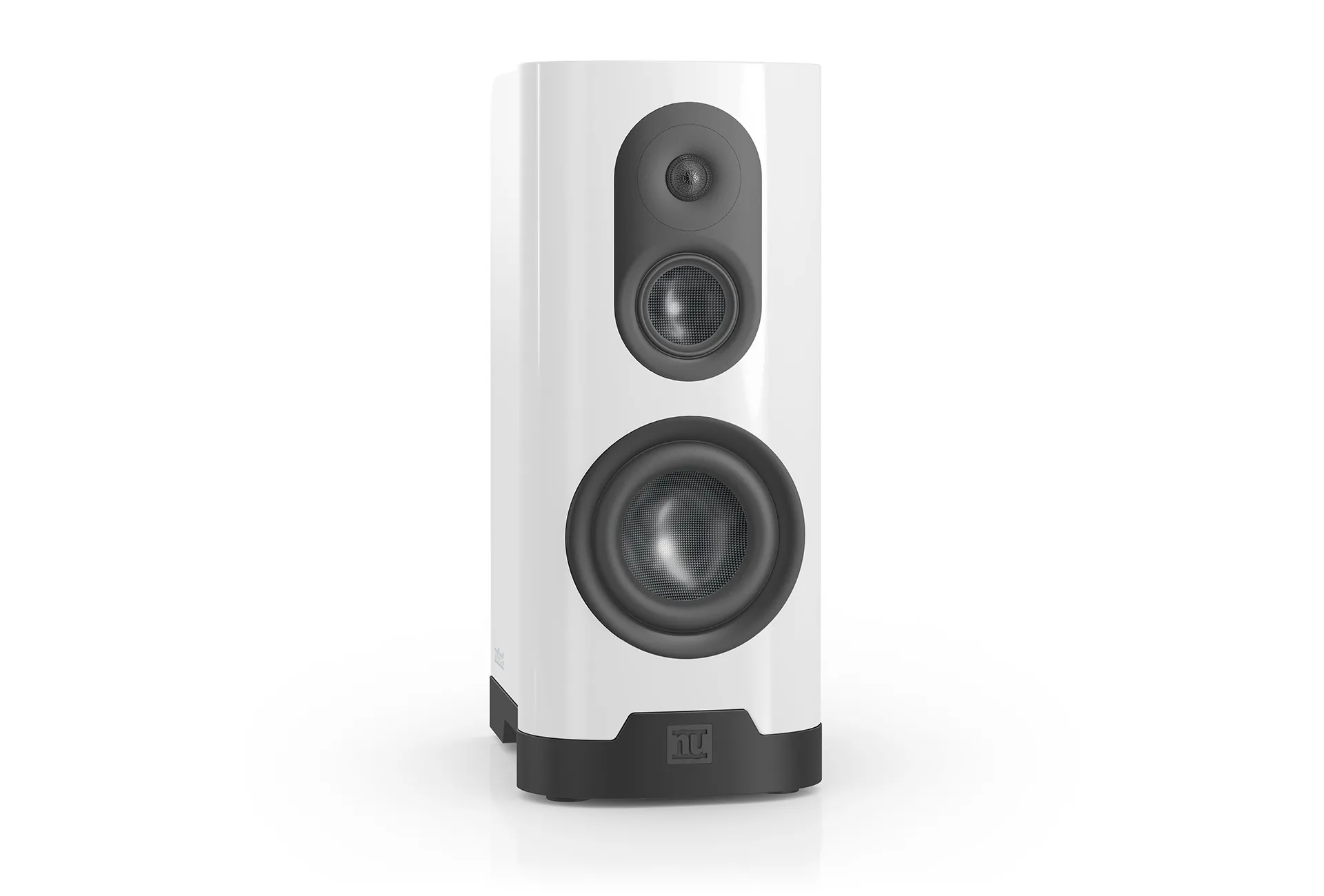

nuVero nova 9
- Exceptional deep bass down to almost the hearing threshold from a compact form that sets design accents
- Low crossover frequencies create a precise, spatial sound image and make the music tangible
- Acoustically optimised design that translates excellent sound into aesthetics according to the principle of ‘form follows function’
- Fascinatingly wide omnidirectional sound dispersion, which no longer limits optimal listening conditions to a ‘sweet spot’ but enables them across a wide area.
- Spatial, three-dimensional, almost tangible sound impression thanks to the point-source radiation characteristics of the compact mid/high-frequency field
- Balanced, homogeneous sound spectrum thanks to meticulous tuning and high-quality crossover components – exclusively with tightly tolerated components
Concentrated high end – with superior sound quality
The nuVero nova 9 combines Nubert's sound expertise in a compact, elegant body – with the aim of crystallising the latest technical advances for the compact class and creating an acoustic benchmark. It is characterised by unbridled musicality and a homogeneous, radiant sound image that impresses with its precision and spatiality. True high-end sound is thus also possible for smaller living spaces, with high aesthetics and impressive sound power.
‘WideStage’ – musicality in unprecedented development
Experience a completely new type of omnidirectional sound distribution – with a full sound spectrum even when listening from a significantly off-centre position: excellent sound all around, even when you have guests or are moving freely around the room. Our nuVero nova provides full listening enjoyment without a narrow sweet spot, even at extreme angles of up to approx. 60° to the side of the speaker.

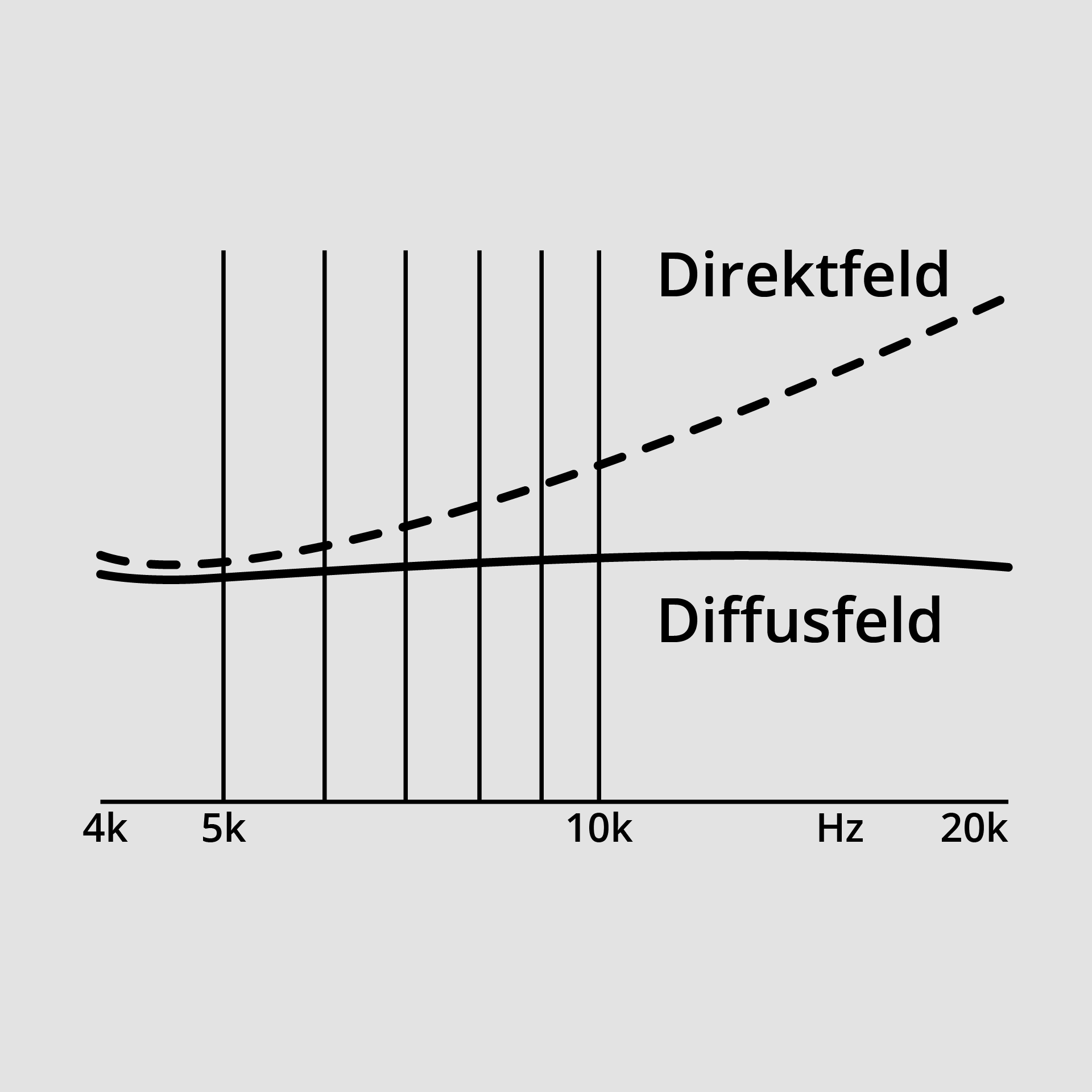

Diffuse field equalisation for the finest high-frequency resolution
At a listening distance of approx. 60-80 cm, you are in what is known as the diffuse field in average living rooms, where the reflected sound is stronger than that coming directly from the loudspeaker. Our diffuse field equalisation specifically compensates for the difference between direct and reflected sound. The result: unusually transparent, finely detailed and consistently stress-free high frequencies.

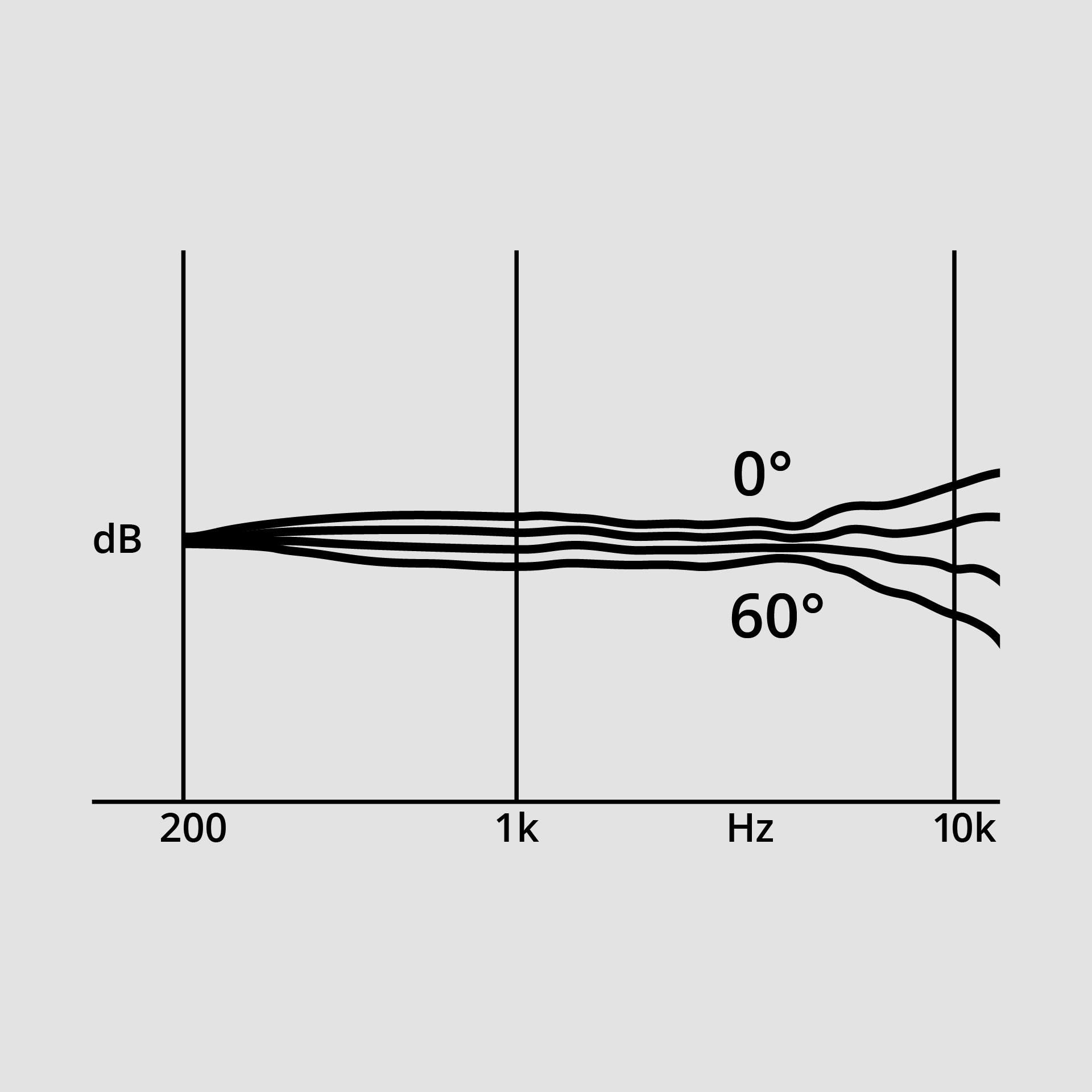

“UltraDirectivity” for maximum balance
Consistently natural hearing throughout the room – the UltraDirectivity we have achieved through numerous development efforts, combined with our diffuse field equalisation, creates an ideally homogeneous, cleanly defined sound field, the ‘BalancedField’. Even in rooms with less than perfect acoustics, authentic and brilliant music reproduction is possible throughout the entire space.
Sound and space – perfectly matched
The best sound quality also depends on the location. For speaker positions close to walls, we have therefore equipped the rear of the nuVero nova with two high-quality plug-in bridges. These enable location equalisation if necessary. In addition, the spatial and spectral balance of the sound image can be optimised by means of switchable diffuse field equalisation – for the best sound even in acoustically difficult environments.
Airy and resonance-free
With our innovative NonResonantTechnology, we have been able to effectively eliminate the disruptive resonances (ringing) of conventional metal tweeters. For the first time, metal diaphragms achieve the natural sound we demand and now impress with exceptional transparency, a detailed, silky sound image and airy nuances up to the hearing threshold.
Clearly contoured and lively
A powerful neodymium magnet is at the heart of our new midrange driver. Its 4-layer carbon membrane delivers thrilling dynamics and impulse accuracy. It also impresses with an almost tangible soundstage – as with point sources.
Controlled dynamics
4-layer carbon membrane technology also determines the precision of the impulse-accurate deep bass. Sound-damaging vibrations are specifically eliminated. Extremely powerful magnetic drives and large voice coils ensure enormous resilience and outstanding performance – even during continuous attacks and at high levels.
At the Center of Sound Truth

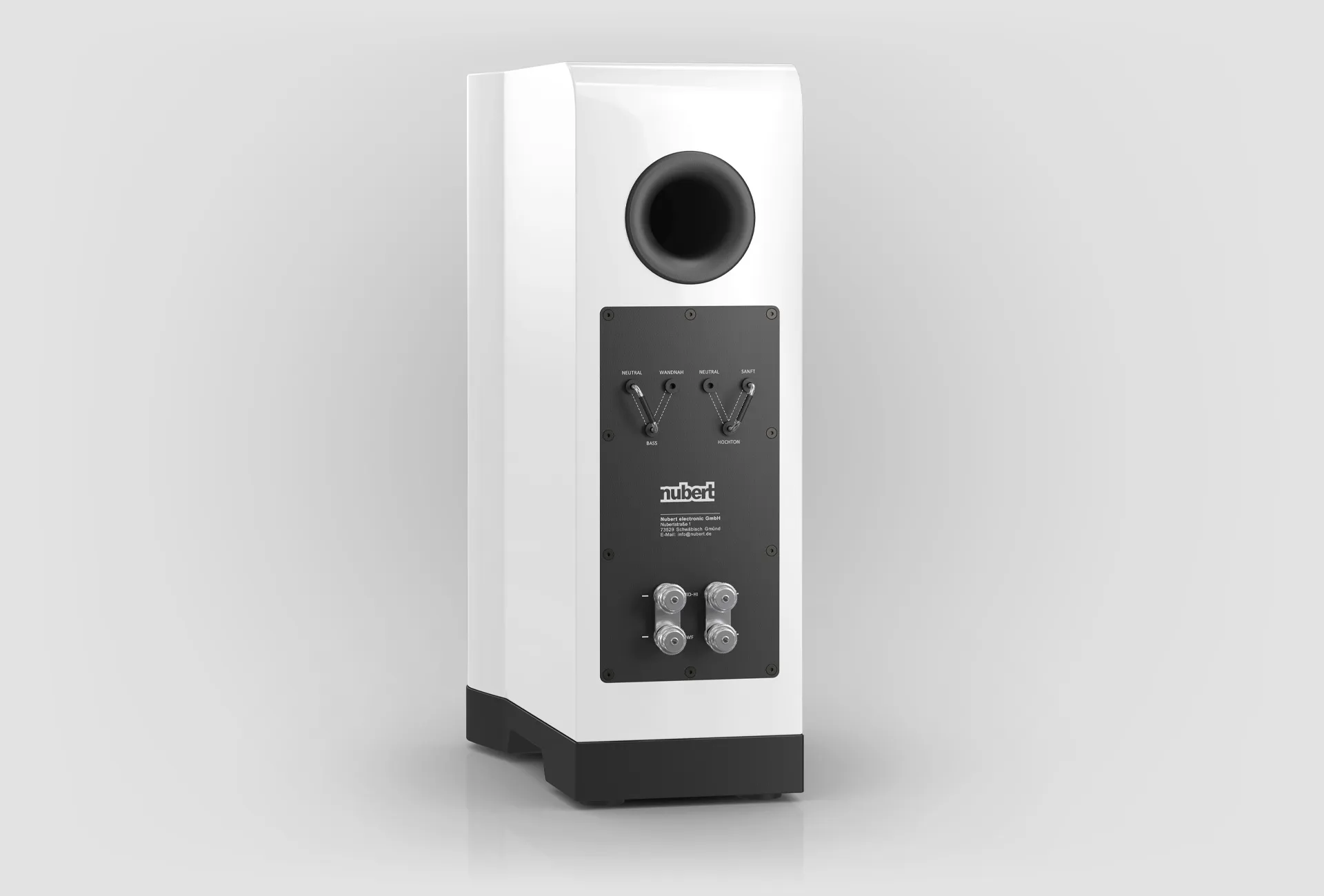

Our finely tuned crossover network uses only high-quality components, each precisely matched to the driver system. The result: phase-accurate transitions with steep filter slopes and a listening experience that impresses with high precision and naturalness.
Also for tube power amplifiers...
The nuVero nova 9 is the ideal partner: multiple compensation elements guarantee impedance curves without major fluctuations.
Sound symbols
The high-end aspirations of the nuVero nova 9 are not only reflected in its sound profile. Attention has also been paid to its distinctive design, which follows the principle of ‘form follows function’. The softly rounded front of the cabinet prevents edge dispersion and contributes to excellent sound dispersion. The striking high/midrange driver and the bass driver protruding from the curve accentuate the sound sources: in the white version through the characteristic black and white graphics of the shapes, and in the black version through the fascinating contrast of the piano lacquer with the matt surfaces. As a sound sculpture, the nuVero nova 9 sets a standard for sophisticated musicality in any living space.
Series Overview
With our nuVero nova series, we are setting new standards in the world of high-end passive loudspeakers. The series comprises seven models that deliver high-end music enjoyment for a wide range of requirements. From an LCR speaker that can be mounted on either the wall or ceiling, to a centre speaker and a compact speaker, to floor-standing speakers in various performance classes. The sound universe is completed by a subwoofer for ultimate deep bass. Sound fidelity has been given a new quality with the variety of innovations implemented here: the finest, lifelike resolution of all sound-relevant details in the music without any artificial emphasis. Honest speakers – for more fascinating sound.
Test results
We are awarded. And proud of it.
Accessories
We not only build exceptional loudspeakers and electronics, but also offer the matching accessories. So you can find everything useful for our products, from cables to adapters.
Our recommendations
Not the right one? We recommend taking a look at related products that you might like.
Downloads
Reviews
Login
Honest speakers - Honest reviews
Satisfied? Or can we do something better with our products? Then write us your review. Simply log in to your account and write the review of your order here.
Here with us, every review is checked for authenticity and is then approved. So you can be sure that the feedback you give us about our products is genuine.
Safety Instructions
Nubert electronic GmbH
Nubertstraße 1, 73529 Schwäbisch Gmünd, Deutschland
Email: info@nubert.de Phone: +49 07171 - 8712-0
Safety instructions
DEVICE APPROVAL AND CONFORMITY WITH EC DIRECTIVES
Nubert electronic GmbH hereby declares that this product complies with the 2014/53/EU directives, provided that it is installed and used in accordance with the manufacturer‘s instructions. The full text of the EU Declaration of Conformity is available at the following Internet address: www.nubert.de/en/declaration-of-conformity
- Do not change the serial number on the speaker. It is part of the operating approval.
- If the loudspeaker is repaired or modified by workshops or other third parties not authorized by Nubert, it loses its operating license.
- Only accessories and devices may be connected which in turn comply with all legal requirements and are approved.
- The loudspeaker may only be used for the applications specified in the „Intended Use“ section.
INTENDED USE
This speaker is designed exclusively for sound reproduction in dry rooms. Use the speaker only as described in this manual.
Any other use (particularly safety-relevant or medical use, installation in open environment like IP-certified products) is considered improper and may result in property damage or even personal injury. Nubert electronic GmbH does not assume any liability for damages caused by improper use.
SAFETY INSTRUCTIONS
The entire operating manual, in particular the safety instructions, must be read in full before connecting and commissioning the device. For your own safety, be sure to follow all warnings and safety instructions in this manual and on the speaker. The user is not permitted to carry out any work on the loudspeaker other than the described work. Keep this document so that you have access to it at all times. Furthermore, it must also be handed over to possible re-owners.
GENERAL INFORMATION
Never operate the loudspeaker unattended!
Danger of electric shock!
To avoid the risk of electric shock, the speaker may not be opened by the user. There are no user-serviceable parts inside the speaker. Service work and repairs are reserved for qualified specialists authorized by Nubert. If you need service, please contact Nubert electronic GmbH directly (info@nubert.de)!
Danger of suffocation!
Never let children use or play with the speaker, remote control or packaging unattended. There is a risk that children will get caught in the packaging film and suffocate. Make sure that children cannot remove any small parts from the devices! These parts, like the remote control battery, could be swallowed and cause suffocation. In case of swallowing any parts, contact a doctor immediately!
Danger of injury or damage
When moving the speaker, take care to avoid injury and damage!
Caution!
Since the speaker can only be completely disconnected from the mains at the mains input on the rear of the unit or by pulling the mains plug from the socket, it must be positioned so that you have free access to the mains input or mains plug. If any of the following situations occurs, the loudspeaker must be switched off immediately and disconnected from the mains. Contact Nubert electronic GmbH (info@nubert.de) immediately!
- The speaker has been damaged or has fallen down.
- Power cord or plug is damaged
- Objects or liquid have gotten into the loudspeaker
- The speaker has been exposed to excessive moisture or rain.
- The speaker does not work properly or exhibits a significant reduction in performance.
- The loudspeaker smells burnt, develops smoke or makes unusual noises.
Only use accessories recommended by Nubert!
INSTALLATION INSTRUCTIONS
Caution!
An unstable location can damage the speaker.
- Only place the loudspeaker on a flat, stable surface and make sure that it cannot be knocked over!
- Also make sure that no unintentional pulling can occur on the cables to avoid knocking over the speaker or damaging the connection sockets
- Keep strong mechanical shocks away from the loudspeaker!
Caution!
Excessive heat build-up inside the unit can shorten its service life or lead to fire.
- Never cover the back of the speaker! Make sure that there is a clearance of at least 10 cm and sufficient air circulation in the back area!
- Do not operate the speaker and remote control near heat sources such as radiators or stoves!
- Do not expose the speaker and remote control to direct sunlight.
- Never place burning candles or similar open fire sources on the loudspeaker!
Danger of explosion!
Installation in unsuitable locations can cause explosions. Do not use the speaker or remote control
- in environments where there is a risk of fire or explosion!
- at extremely low or extremely high temperatures!
- near flammable gases or vapours!
- near strong dust!
- near flammable materials!
Danger of electric shock!
The loudspeaker carries mains voltage and voltages higher than 35 V AC or DC inside. It has no special protection against the intrusion of liquids or objects into the system. There is therefore a risk of lethal electric shock
- Never touch the speaker with wet hands!
- Only use the speaker in a dry place!
- Do not operate it outdoors or in damp rooms!
- The loudspeaker must be protected from liquids of all kinds, including dripping and splashing water
- Do not place any containers containing liquids (e.g. flower vases) on the speaker or in the immediate vicinity!
- If the loudspeaker is moved from a cold environment to a warm room, condensation may form inside the unit. Wait at least six hours until the loudspeaker has reached room temperature and is dry before switching it on!
- No objects of any kind may get into the device.
- Should the loudspeaker come into contact with liquids or should objects have gotten inside, please unplug the mains plug immediately and contact Nubert electronic GmbH (info@nubert.de)!
Danger of injury or damage!
Concerning speakers with threaded sockets on the underside of the housing: The threaded sockets on the underside of the housing may only be used to mount the supplied speaker feet!
They are not designed for tensile loads and must therefore not be used as a holder for hooks or similar to hang the speaker from. A falling speaker can cause serious injury and damage
CONNECTION INSTRUCTIONS
Allgemeine Anschlusshinweise
Disconnect the mains plug before changing any wiring on the system!
- Make sure that all connections have been made correctly and that all plugs are firmly seated in the sockets before connecting the speaker to the mains
- Use only the intended cables or plug connections for the connections! Failure to do so may result in damage or malfunction
- If you want to disconnect connections on the loudspeaker, always pull the plug, never the cable!
- Ensure that all plugs are firmly seated in the sockets!
- Only use cables and accessories recommended by Nubert!
Danger of electric shock!
Faulty mains supply systems or excessive mains voltage can lead to electric shocks
- All power supply or antenna systems connected to the loudspeaker must comply with all applicable laws and regulations and be professionally installed by an approved installation company
- Use only the appropriate power cord to connect the speaker. Do not modify the power cord or its plug.
- Make sure that the mains voltage at your location matches the requirements of the loudspeaker! The correct power supply can be found on the label on the back of the speaker. It must not be connected to other power supplies
- Devices of Class 1 construction must be connected to the mains power socket outlet with a protective earth connection. Make sure that the installation of the protective earth is carried out correctly!
- When laying the power cables, make sure that they cannot be damaged (e.g. by heating or mechanical stress)! Pay particular attention to the areas of the connectors and distributors!
Caution!
Overvoltage in the power supply system (e.g. due to lightning) can damage or destroy the device and power supply unit.
- An overvoltage protection element can provide a certain degree of protection against excessively high voltages in the power grid.
- However, the greatest possible protection against damage can only be achieved with the complete separation from the mains supply. In case of thunderstorms or danger of lightning strikes, disconnect the mains cable from the socket and any antenna plugs from your hi-fi system!
- If the speaker is not used for a long period of time or is unattended, the power supply should be disconnected. Disconnect the mains plug from the socket!
REMOTE CONTROL AND BATTERY
This product comes with a remote control and a battery. The following must be observed when handling remote controls and batteries:
If the batteries are discharged, the range of the remote control will decrease significantly. If this happens, replace the batteries immediately. Always use high-quality lithium button cells as replacement batteries. Make sure that the polarity is correct when inserting the battery into the battery compartment!
Caution!
Improper handling can lead to material damage.
- Do not drop the remote control!
- Do not expose the remote control and battery to water or other liquids!
- Do not operate or store the remote control and battery in locations with highhumidity or particularly high or low temperature!
Danger!
Leaking or exploding batteries can pose a health hazard and cause damage to goods.
- If you do not use the device for a long time or if the batteries are depleted, remove the batteries from the remote control to prevent discharge, leakage of acid or explosions.
- Leaking batteries must be replaced immediately.
- If you find a leaking battery, do not touch the leaking material and dispose of the batteries immediately!
- Do not touch leaking batteries!
- Should your skin, eyes or mouth come into contact with the leaking material, clean the affected area immediately with water and contact a doctor
Danger! Do not ingest battery, chemical burn hazard!
Ingestion of batteries can cause severe internal burns and death within a short time span.
- Ensure that batteries do not get into your body by any means, in particular that they cannot be swallowed!
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you think that batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention!
Disposal instructions
DISPOSAL OF ELECTRICAL AND ELECTRONIC DEVICES
Information according to the German Act on Electrical and Electronic Devices (ElektroG)
Owners of waste electrical and electronic devices must dispose of it separately from unsorted municipal waste.
Meaning of the symbol „crossed-out trash can“
The crossed-out garbage can symbol regularly displayed on electrical and electronic equipment and batteries indicates that the respective device must be collected separately from unsorted municipal waste
Batteries, accumulators and lamps
Spent batteries and accumulators that are not enclosed by the waste equipment, as well as lamps that can be non-destructively removed from the waste equipment, have to be separated from the waste equipment before handing it in at a collection point.
If the waste equipment is to be prepared for reuse with the participation of a public waste management authority, batteries and accumulators as well as lamps do not have to be removed.
For the disposal of batteries and accumulators, please also observe the following information on the battery law
Deletion of data
Old devices may contain personal data. In your own interest, please note that you, as the end user, are responsible for deleting the personal data on the old devices to be disposed of before handing them in.
Options for the return of old devices
Owners of old devices from private households can hand them in free of charge at the local collection points of the public waste disposal authorities or at the collection points set up by manufacturers or distributors.
Distributors of electrical and electronic devices are obligated to take back old devices free of charge in accordance with § 17 Sections 1 and 2 of the Electrical and Electronic Equipment Act (ElektroG). The take-back process is as follows:
Distributors with a sales area of at least 400 m² for electrical and electronic equipment and distributors of groceries with a total sales area of at least 800 m² who offer electrical and electronic equipment several times per calendar year or on a permanent basis and make it available on the market are subject to the obligation to take the devices back. This applies in the case of distribution using means of distance selling (e.g. online retailers), with the stipulation that the relevant floorspace depends on the storage and shipping areas for electrical and electronic equipment. Distributors subject to the take-back obligation must,
- when supplying a new electric or electronic device to an end-user, take back free of charge an end-user‘s old device of the same type that fulfills essentially the same functions as the new device at the place of supply or in the immediate vicinity thereof. If the device is delivered to a private household, the consumer may demand the collection of the old device at that location. Disposal instructions EN 8 In the case of distribution using means of distance selling (e.g. online store), free collection is limited to electrical and electronic equipment in categories 1, 2 and 4, namely “heat exchanger”, “Screens, monitors and devices containing screens with a surface area greater than 100 square centimeters” or “large equipment” (the latter with at least one external dimension over 50 centimeters). For equipment in categories 3, 5 and 6, the distributor must ensure suitable return options within a reasonable distance from the respective end user.
- at the request of the end user, take back free of charge at the retail outlet, or in the immediate vicinity thereof, waste equipment that does not exceed 25 cm in any external dimension; take-back must not be linked to the purchase of an electrical or electronic device and is limited to three old devices per type of device. In the case of distribution using means of distance selling, the distributor must ensure appropriate return options at a reasonable distance from the respective end user
BATTERIES/ACCUMULATOR
Information according to the German battery law (BatterieG)
Ingredients of batteries (e.g. chemicals) can damage the environment and health if not stored and disposed of properly. In particular, lithium-con taining batteries must be handled with care due to the special risks, e.g. fire hazard or risk of ingestion with button cells. At the same time, recyclable raw materials may also be included. Batteries must therefore not be disposed of with normal household waste. Separate collection can enable the recycling of raw materials; it also avoids negative impacts on the environment and human health due to the release of hazardous substances. As the end user, you are legally obligated to return used batteries.
You can return batteries after use free of charge to a retail store or to designated collection points (e.g. public collection points in your community or in stores). You can also return the batteries to the seller via mail, observing the dangerous goods regulations if applicable
The disposal in retail stores is limited to used batteries that the distributor carries or has carried in his product range in quantities customary for disposal by end users
The symbol with the crossed-out garbage can reminds you that you must not dispose of batteries in municipal waste. Below this sign you may find additional symbols with the following meaning regarding content materials:
Pb = Battery contains more than 0.004 percent lead by mass,
Cd = Battery contains more than 0.002 percent cadmium by mass,
Hg = Battery contains more than 0.0005 percent mercury by mass
To avoid littering and to reduce waste, it is recommended to use rechargeable batteries or batteries with a long service life. Long operational time of electrical and electronic equipment is made possible using replaceable accumulators. Littering of public spaces can be avoided by disposing of batteries correctly. It may also be possible to reuse a battery instead of disposing of it, for example by reconditioning or refurbishing the battery. In addition, equipment and accumulators can also be prepared for reuse, for example, by replacing or refurbishing the accumulators
Technical information
| Device type: | Compact loudspeaker |
|---|---|
| Width: | 23,15 cm |
| Height: | 54,0 cm |
| Depth: | 36,5 cm |
| Width (additional information): | 32.35 cm (with traverse) |
| Weight: | 20,5 kg |
| Packaging dimensions (W x H x D): | 71,5 cm x 35,5 cm x 48,0 cm |
| Shipping weight: | 29,0 kg |
| Standard colour: | White |
| Color: | White Piano Lacquer |
| Scope of delivery: | 1x nuVero nova 9, 1x speaker cable 2x2.0 mm² 4m, 1x microfibre cloth, 1 pair of assembly gloves, documents |
| EAN / GTIN: | 4260166758641 |
| Country of origin: | China |
| WEEE-Reg. No.: | DE 48888173 |
| Construction Method: | Bass reflex |
| Construction: | Direct radiator |
| Tweeter crossover frequency: | 1.900 Hz |
| Midrange crossover frequency: | 380 Hz |
| Lower cut-off frequency (-3 dB): | 34 Hz |
| Upper cut-off frequency (-3 dB): | 30.000 Hz |
| Lower cut-off frequency (-6 dB): | 31 Hz |
| Upper cut-off frequency (-6 dB): | 31.000 Hz |
| Efficiency (2.83V/1m): | 84,5 dB |
| Continuous load capacity: | 180 W |
| Pulse load capacity: | 250 W |
| Shielding: | Magnetically compensated |
| Impedance: | 4 Ohm |
| Protection: | Self-resetting fuses |
| Loudspeaker inputs: | 2 |
