Rotel RA1572 MK II

The audiophile masterpiece of its class

The RA-1572MKII integrated amplifier combines the best of Rotel's analog and digital technologies to bring your music to life with exceptional fidelity. With the RA-1572MKII, Rotel has further developed the concept of the integrated amplifier and optimized it in every respect. This includes a solid output power of 120 watts into 8 ohms in Class AB mode, numerous innovations in the audio circuits, and a premium D/A converter. This includes a solid output power of 120 watts into 8 ohms in Class AB mode, numerous innovations in the audio circuits, a premium audiophile D/A converter, and inputs for all types of sources. For sound, comfort, performance, and design that are unmatched in this class! As a typical Rotel amplifier, the RA-1572MKII has an oversized toroidal transformer manufactured in-house.

As a typical Rotel amplifier, the RA-1572MKII has an oversized toroidal transformer manufactured in-house. The design of this toroidal transformer prevents stray field coupling, which could interfere with audio signals in adjacent stages. The transformer feeds a network of highly efficient slit-foil screen capacitors with low ESR in a T network for deep, precise bass reproduction. The transformer feeds a network of highly efficient slit-foil filter capacitors with low ESR in a T-network for deep, precise bass reproduction. The RA-1572MKII supports digital sources via a 32-bit/384 kHz D/A converter from Texas Instruments with carefully tuned output filters.

The RA-1572MKII supports digital sources via a 32-bit/384 kHz D/A converter from Texas Instruments with carefully tuned output filters to preserve even the most subtle details of the music. The preamplifier and power amplifier stages have been carefully designed for natural detail reproduction, maximum enjoyment, and a sound experience you can literally immerse yourself in. Analog, digital, PC USB with MQA support, wireless aptX™ and AAC Bluetooth®, balanced XLR inputs, and an MM phono stage. The RA-1572MKII is compatible with the latest streaming services, including Apple Music, Spotify, Tidal, and more. Analog, digital, PC USB with MQA support, wireless aptX™ and AAC Bluetooth®, balanced XLR inputs, and an MM phono input are available to connect all your favorite music sources. The RA-1572MKII is Roon-certified and, with Roon software, delivers an optimal listening experience that allows you to fully immerse yourself in your music.

The RA-1572MKII is Roon certified and, with Roon software, delivers an optimal listening experience that allows you to fully immerse yourself in your music. The front panel includes a status indicator, input selector, and volume control,

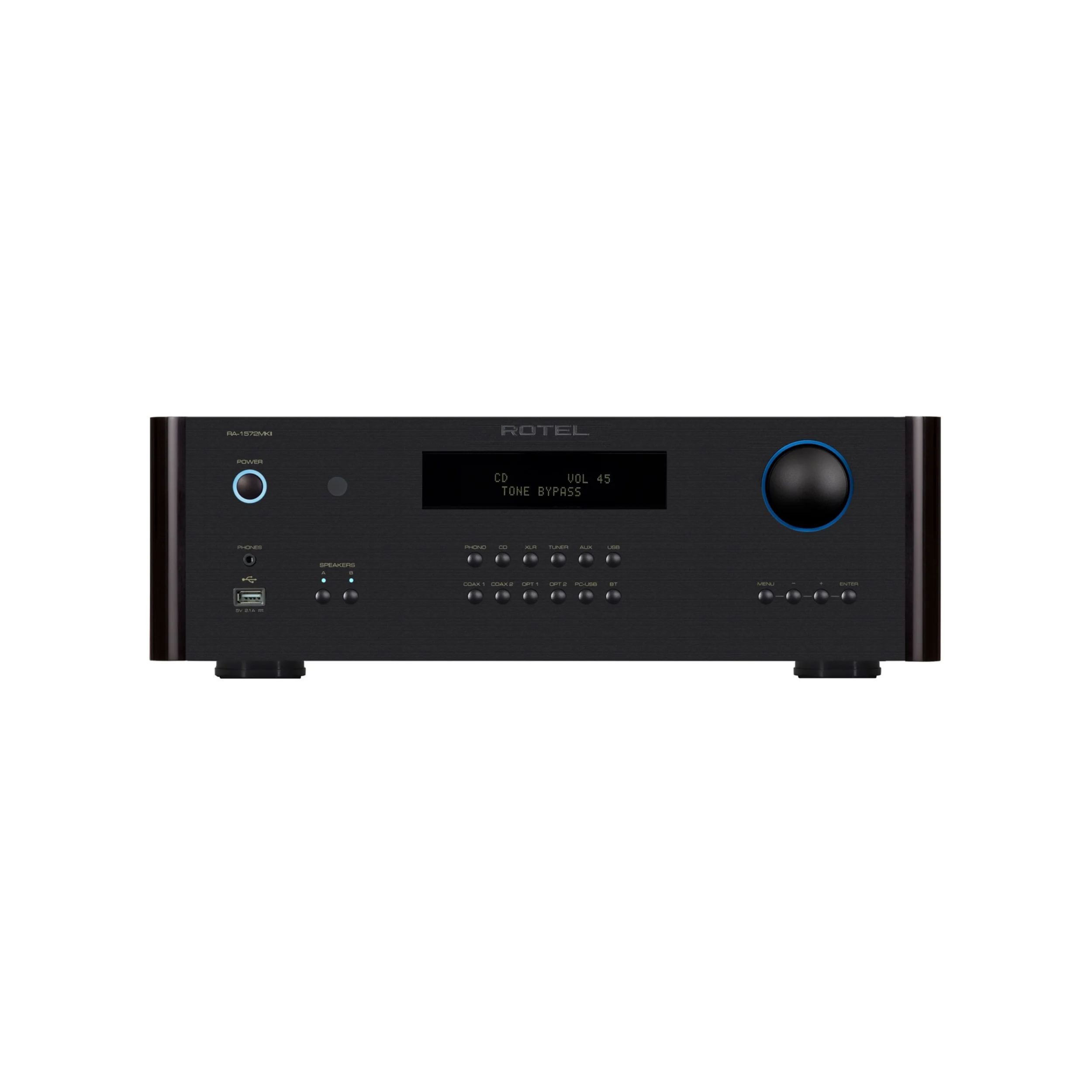

The front panel includes a status indicator, input selector and volume control, A/B speaker selection, and a 3.5 mm headphone jack. The Ethernet and RS232 connections allow for seamless integration into control systems and software updates and are not suitable for network streaming.

Features

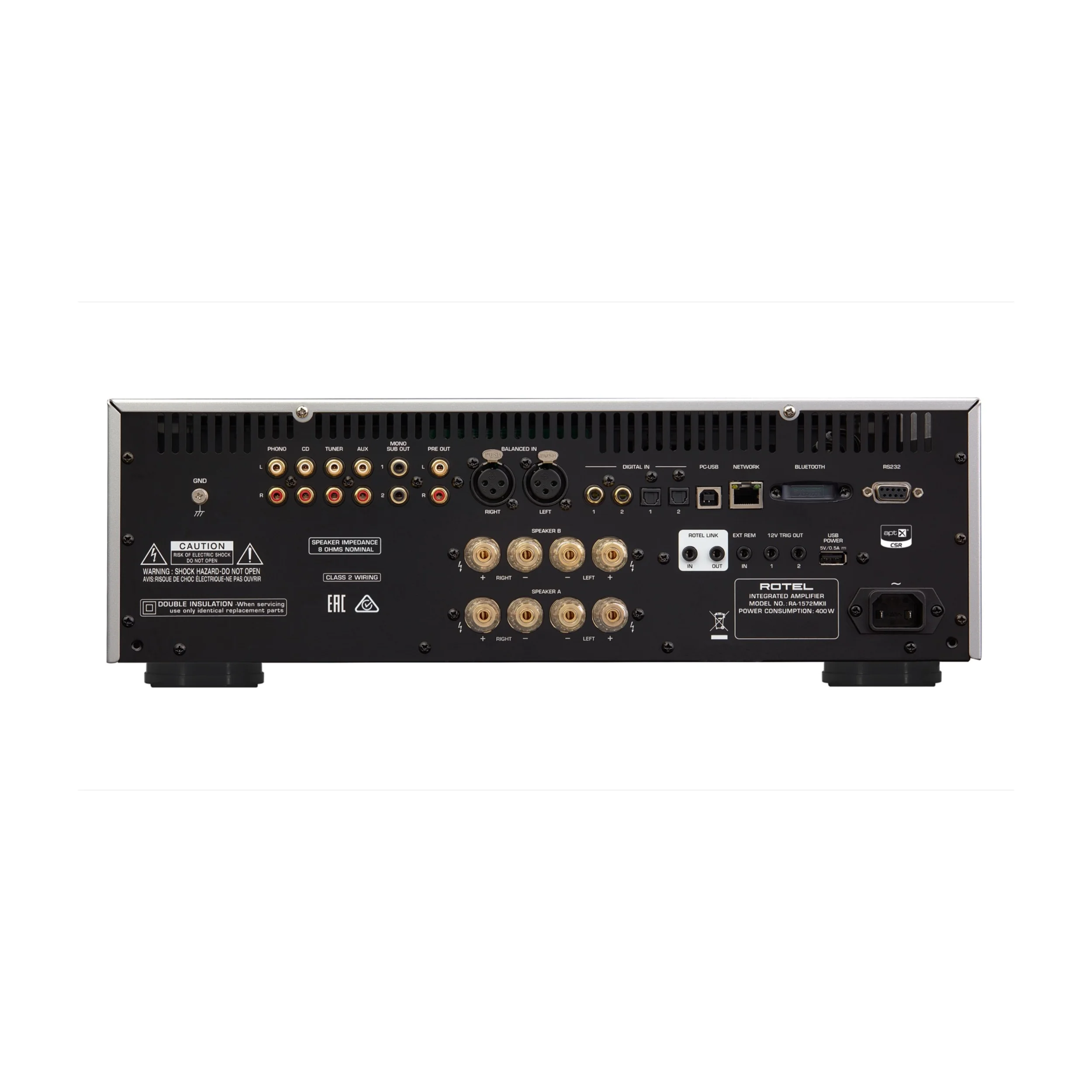

• Analog inputs
• 3× Line In RCA/cinch
• 1× MM phono input
• 1× Line In XLR balanced
• Digital inputs
• 2× S/PDIF coaxial
• 2× S/PDIF optical
• 1× USB-B
• Bluetooth® with aptX™ and AAC
• Output
• 2× subwoofer out (mono)
• 2× speaker outputs (A+B) for banana plugs and spade connectors
• 2× 12 V trigger out
• 1× connection for external remote control
• 2× Rotel Link (in/out)
• 1× LAN (data only)
• 1× RS232 (data only)

Technical

• Max. power: 200 W / channel (4 Ω)
• Continuous power: 120 W / channel (8 Ω)
• Distortion factor: < 0.018%
• Frequency response:
  High-level inputs: 10 Hz – 100 kHz, ±0.5 dB
  Digital inputs: 10 Hz – 90 kHz, ±2 dB
  Phono input: 20 Hz – 20 kHz, ±0.5 dB
• Signal-to-noise ratio (IHF A):
  High-level inputs: 100 dB
  Digital inputs: 100 dB
  Phono input: 80 dB
• Dimensions (W × H × D): 431 × 144 × 358 mm
• Power consumption during operation: 400 W
• Power consumption in standby mode: < 0.5 W
• Weight: 13.6 kg
