Michi Q5
Available, delivery time: 2-3 weeks *
€5,999.00 Incl. VAT plus shipping
07171 87 12 0
Product
The ultimate CD/DAC source: The Michi Q5 Transport DAC
Experience an even better sound experience with the Michi Q5 Transport DAC, a state-of-the-art high-performance CD player that combines cutting-edge technology with exceptional craftsmanship and unparalleled sound quality!

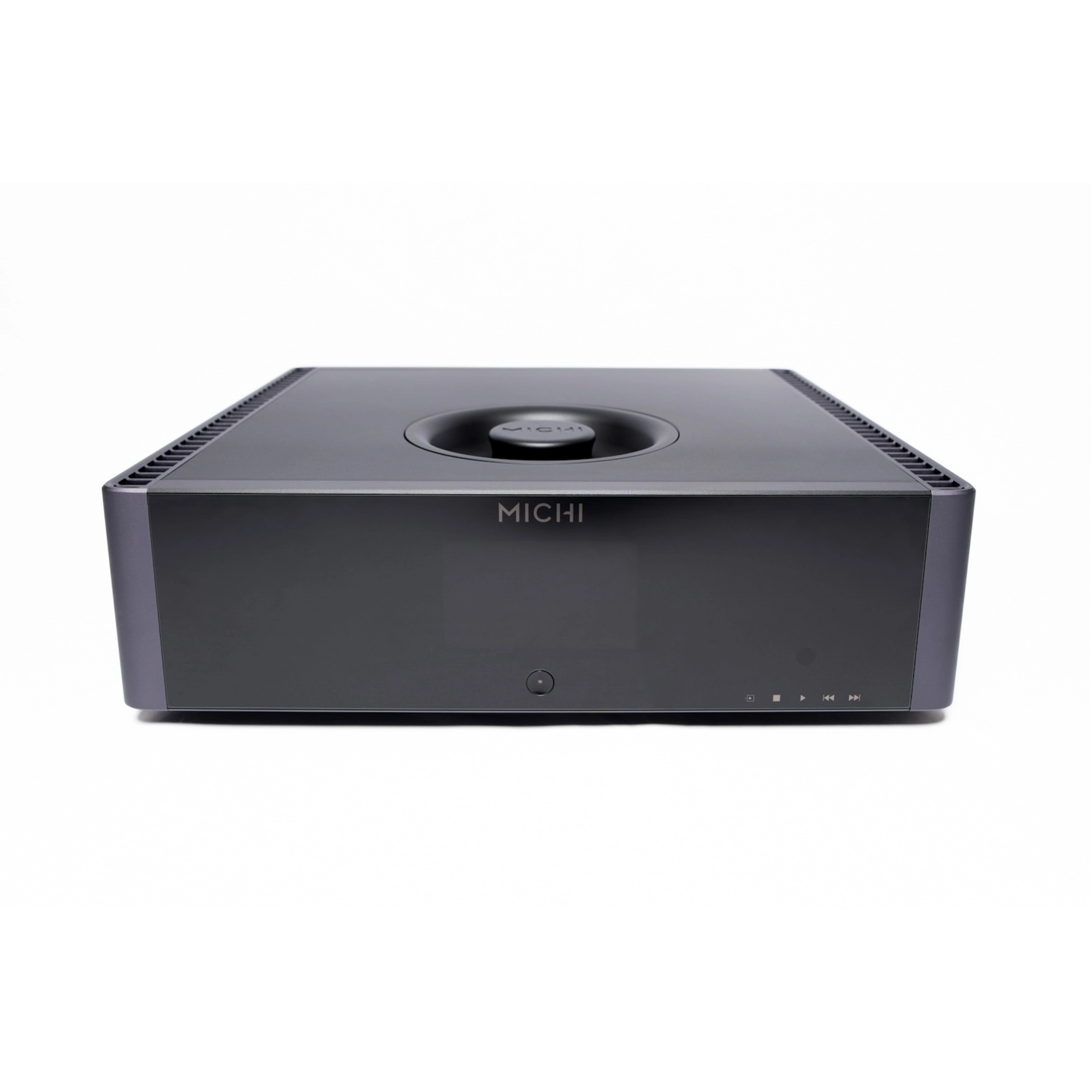

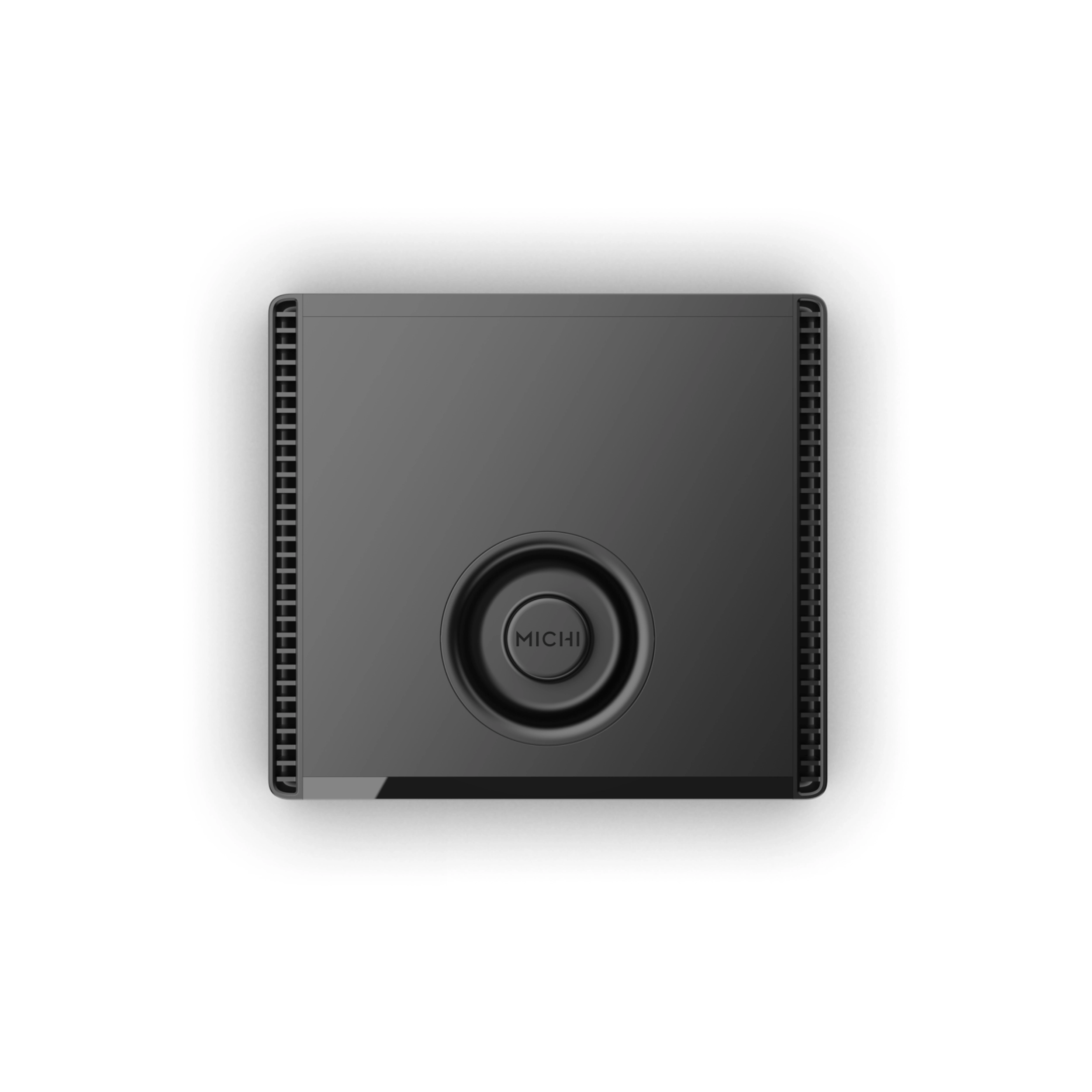

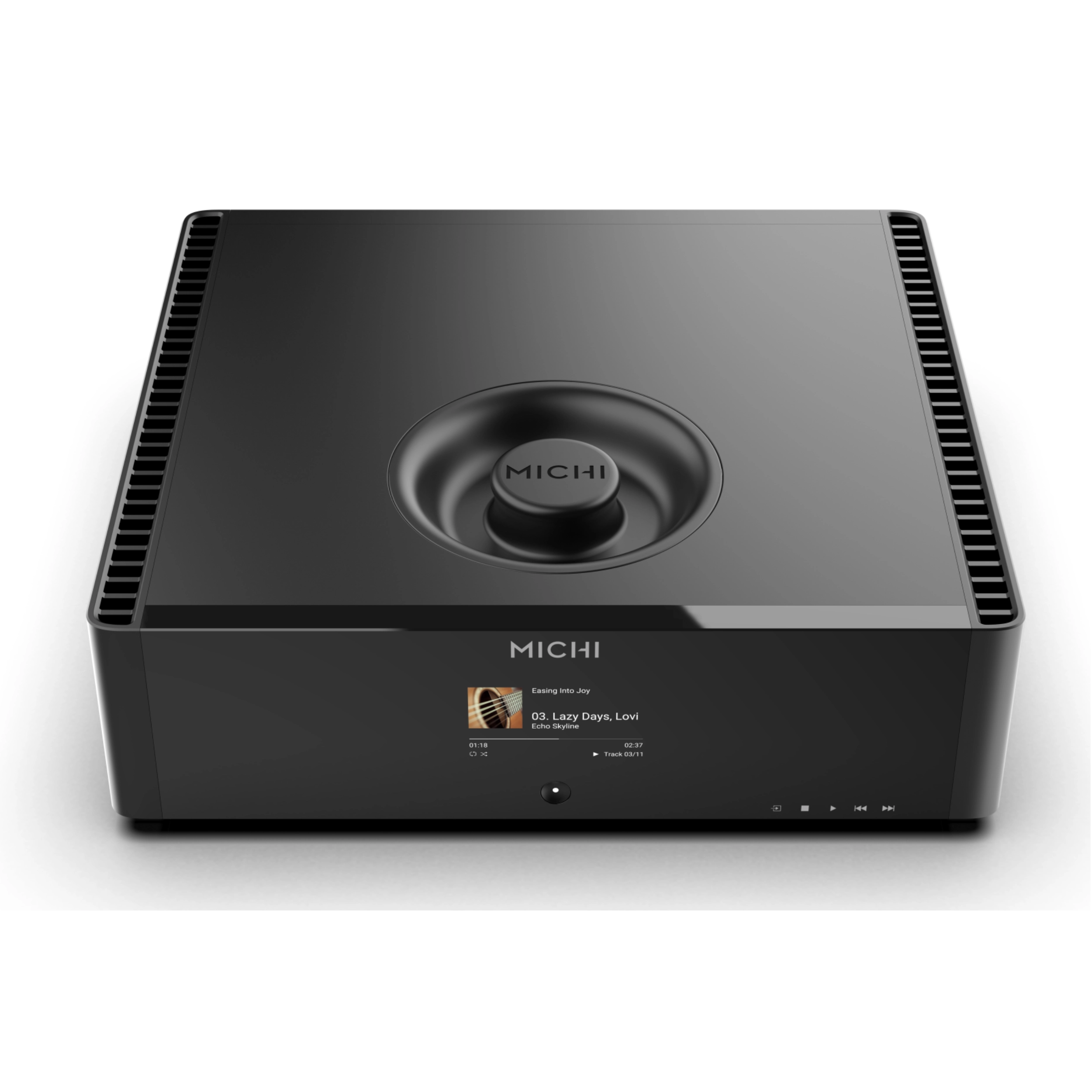

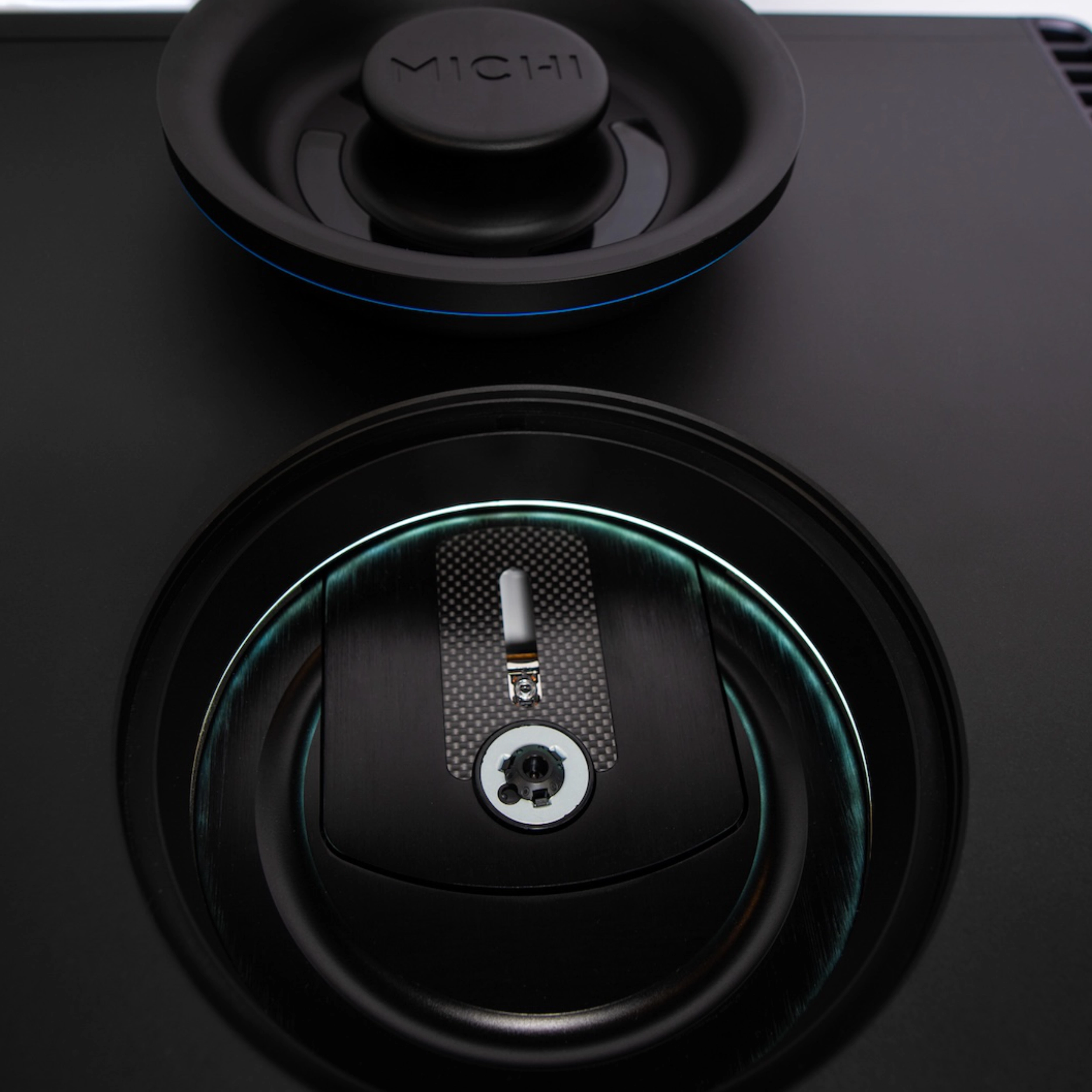

The Michi Q5 features a top-loading CD mechanism made of high-quality carbon and CNC-machined aluminum for durability and a sleek, modern design. The CD mechanism is mounted on a floating suspension to reduce unwanted vibrations and physically isolate the motor from sensitive electronic circuitry. This design enhances the aesthetics of the player and provides a stable and precise playback platform for your CDs.
At the heart of the Q5 is the high-quality ESS-ES9028PRO D/A converter. This 8-channel D/A converter performs the all-important digital-to-analog conversion, dedicating four channels each to the left and right audio signal paths. It extracts the finest details hidden in the music and reproduces them with even greater precision and an extremely low noise level. The fully balanced circuitry ensures flawless sound reproduction with minimal distortion. CD sound is also available via coaxial and optical Toslink connections, so that the Q5 can also be used as a CD-only drive.

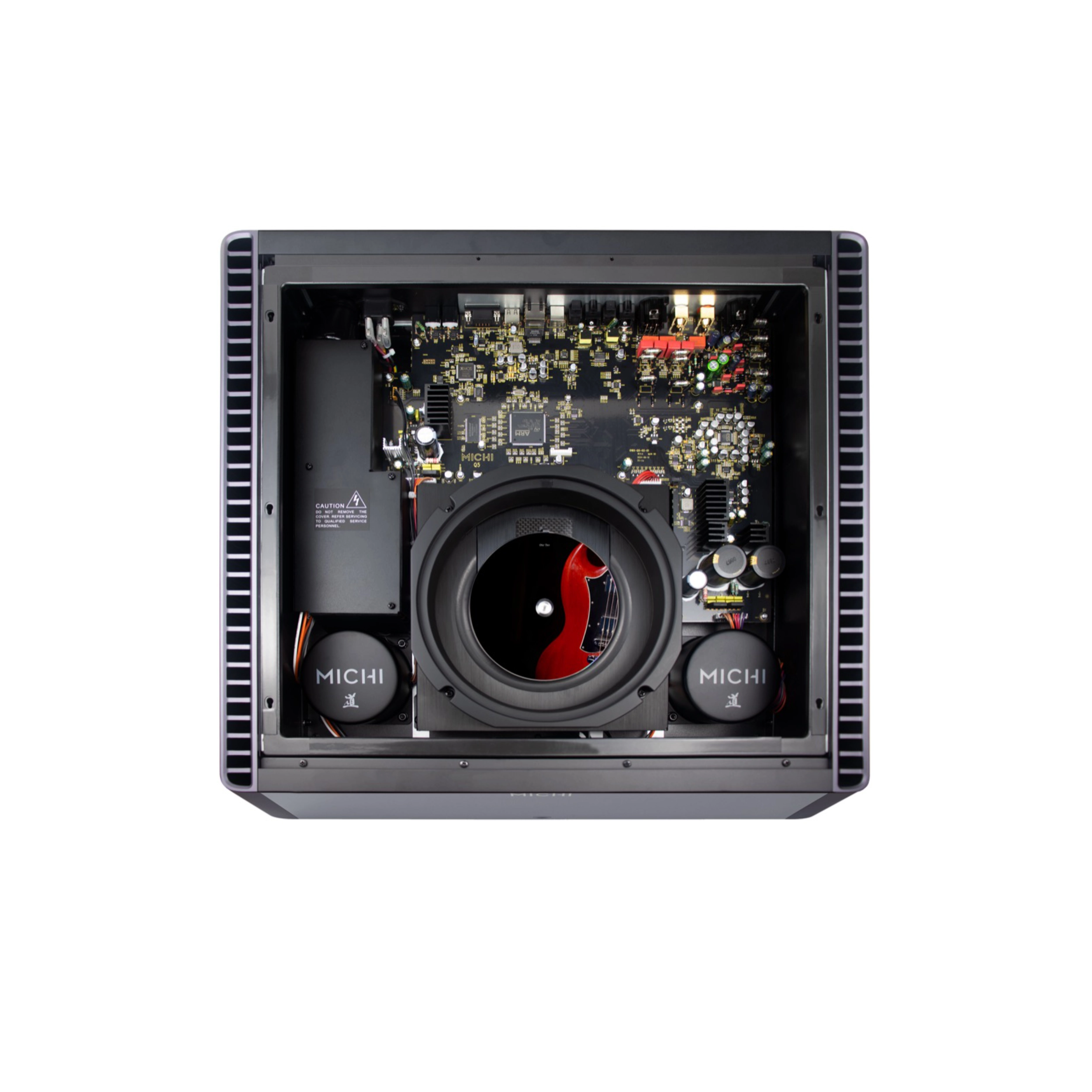

Two internally manufactured toroidal transformers isolate the digital and analog power supplies, significantly reducing noise and interference.
As well as being a top-class CD player, the Q5 supports a wide range of additional audio inputs, including a 32-bit/384 kHz PC USB input with MQA and DSD-4X support, as well as 24-bit/192 kHz coaxial and optical inputs, making it compatible with virtually all digital sources.

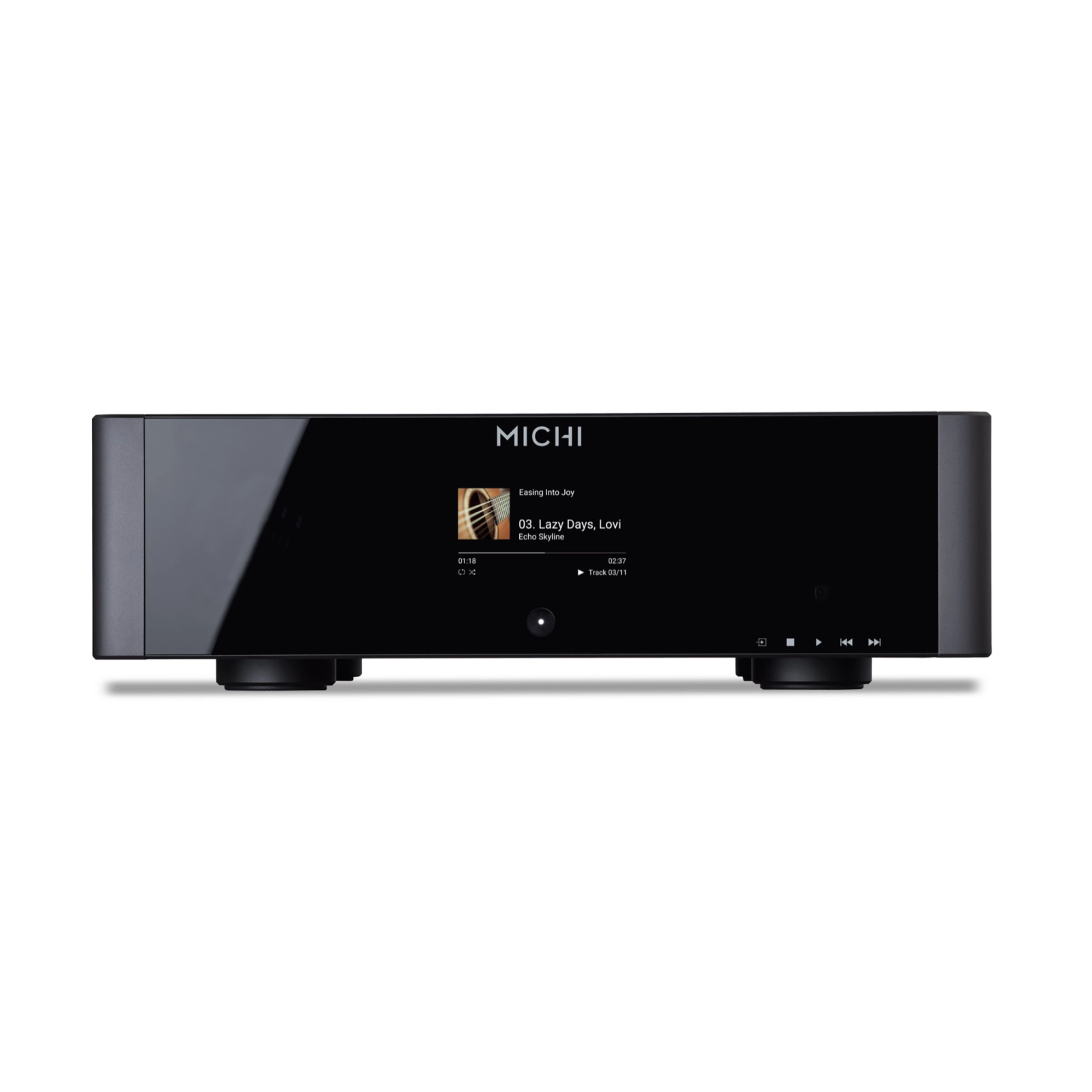

The elegant front panel is clearly laid out, as befits a Michi product. It has a full-color TFT display that shows the CD album cover and enriches the listening experience with an appealing graphic display.

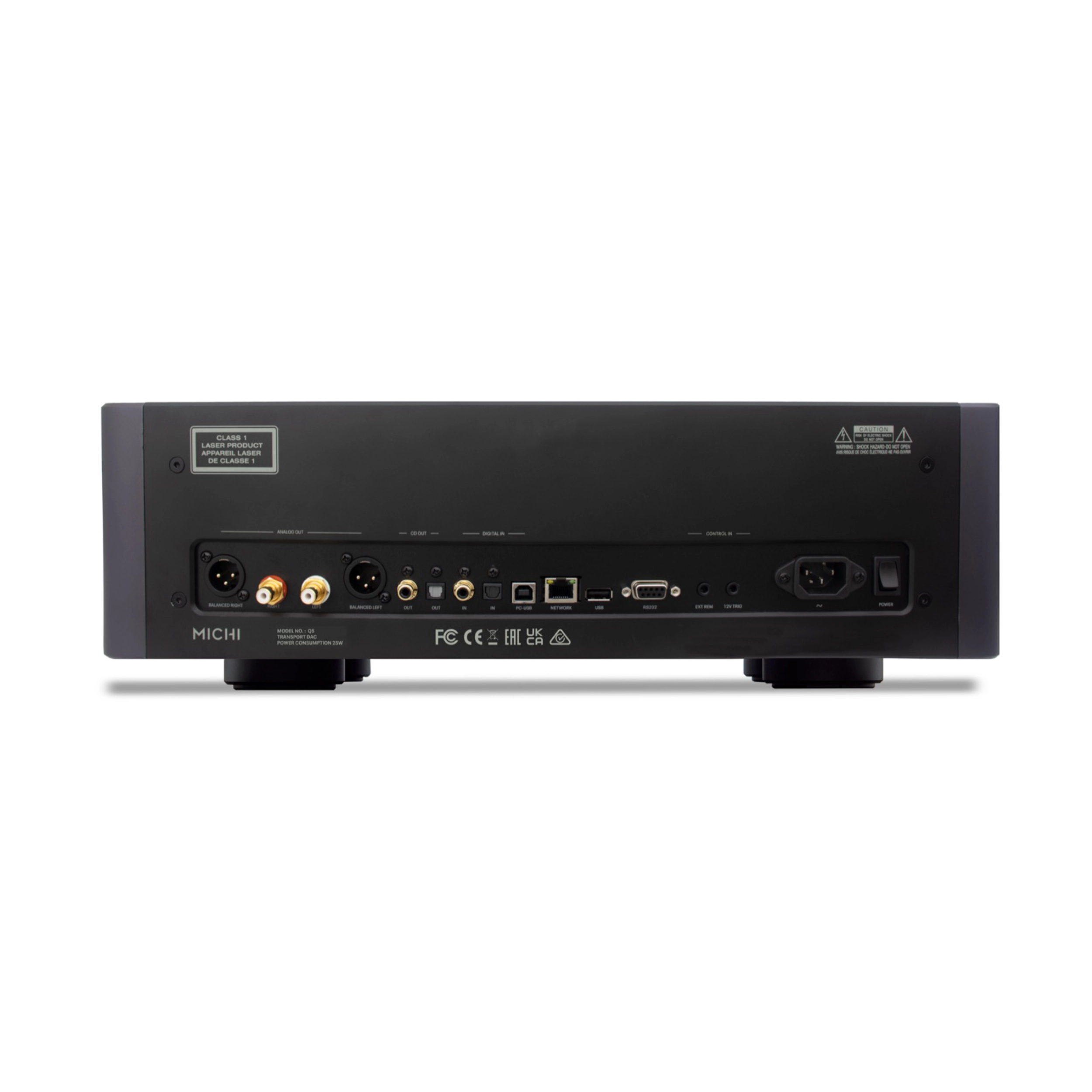

With the included Michi remote control and RS232 and Ethernet connections, the Q5 offers seamless integration into automation systems and enables simple and intuitive control. This allows you to manage your audio system with ease.
The Michi Q5 Transport DAC is designed for discerning audiophiles who demand the very best in both sound quality and design. Its premium build quality, superior sound quality, versatile connectivity and advanced control options make it the ultimate CD player for your high-end audio system.
Experience the new dimension of CD playback - with the Michi Q5 Transport DAC.
Features
- High-precision CD mechanism
- ESS SABRE ES9028PRO 8-channel DAC (32-bit /768kHz)
- PC-USB with DSD 4X decoding and MQA (Studio) rendering
- Roon Tested
- Fully balanced XLR outputs
- Dimmable high-resolution TFT display
- IP and RS232 2-way communication for control system integration
- Michi remote control
- Finish: Black
Technical specifications
- Total harmonic distortion + noise: CD/coaxial/optical/PC USB input < 0.0006 %
- Intermodulation distortion: < 0.002 %
- Frequency response: 20 Hz - 20 kHz (+0 dB, -0.1 dB); 10 Hz - 70 kHz (+0 dB, -3 dB)
- Channel balance: ± 0.5 dB
- Channel separation: > 104 dB at 10 kHz
- Signal-to-noise ratio: > 115 dB (IHF A-weighted)
- Dynamic range: > 99 dB
- Input sensitivity: 0 dBfs / 75 Ohm
- Analog output level / impedance: Unbalanced (RCA) 2.3 V / 100 Ohm
- Analog output level / impedance: Balanced (XLR) 4.9 V / 4 kiloohms
- Digital-to-analog converter: ESS ES9028PRO
- Coaxial/optical digital input: SPDIF LPCM up to 24 bit / 192 kHz
- PC-USB: USB audio class 2.0 up to 32 bit/384 kHz (driver installation required)
- Supports native DSD (up to 4X, 11.2 M) and DoP (up to 2X, 5.6 M)
- Supports MQA and MQA Studio (up to 24 bit/384 kHz)
- Roon Tested
- Power supply: 230 V, 50 Hz
- Power consumption: 25 watts (in standby < 0.5 watts)
- Dimensions (W x H x D): 485 x 150 x 452 mm
- Height of the front panel: 132 mm
- Weight (net): 23.5 kg
Safety Instructions
ATRAUDIO-TRADE Hi-Fi Vertriebsgesellschaft mbH
Wallufer Straße 2, 65343 Eltville am Rhein, Deutschland
Email: rotel@audiotra.de Phone: +49 208 882 66-0
The RS232 connection should be handled by authorized persons only.
WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not expose the unit to dripping or splashing. Do not place objects filled with liquids, such as vases, on the unit. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
The apparatus should be used in non tropical climate.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Touching uninsulated terminals or wiring may result in an unpleasant sensation.
You must allow a minimum 50 cm or 20 inches of unobstructed clearance around the unit.
WARNING: The rear panel power cord connector is the mains power disconnect device. The device must be located in an open area that allows access to the cord connector.
The unit must be connected to a power supply only of the type and voltage specified on the rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz)
Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. Do not use extension cords.
The mains plug is the disconnect of the unit. In order to completely disconnect the unit from the supply mains, remove the main plug from the unit and the AC power outlet. This is the only way to completely remove mains power from the unit.
The batteries in the remote control should not be exposed to excessive temperature such as sunshine, fire or other heat sources. Batteries should be recycled or disposed as per state and local guidelines.
WARNING: The master power switch is located on the rear panel. The unit must allow unobstructed access to the main power switch.
This product shall be connected to a MAINS socket outlet with a protective earthing connection.
The MAINS plug or an appliance coupler is used as the disconnect device, the socket-outlet shall be installed near the equipment and shall be easily accessible.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.(TV, radio, etc.)
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for additional help.
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following to conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio or TV communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the unit and the television tuner.
- Connect the unit to an AC power outlet on a different electrical circuit.
- Consult your authorized Rotel retailer for assistance.
Accessories
We offer not only a wide range of HiFi equipment, but also the appropriate accessories.
Downloads
Technical Information
| Device type: | CD player |
|---|---|
| Width: | 48,5 cm |
| Height: | 15,0 cm |
| Depth: | 45,2 cm |
| Weight: | 23,5 kg |
| Power consumption in standby mode: | 0,5 W |
| Maximum power input: | 25 W |
| Standard colour: | Black |
| Color: | Black |
| Remote control: | Yes |
| Operation on the device: | Touch screen |
| Digital coaxial inputs: | 1 |
| Digital optical inputs: | 1 |
| USB inputs: | 1x USB type A, 1x USB type B |
| Ethernet: | 1 |
| Digital coaxial outputs: | 1 |
| Digital optical outputs: | 1 |
| XLR outputs: | 1 |
| Audio cinch outputs: | 1 |
