nuSub XW-1200
Available, delivery time: 1-3 working days *
€750.00
%
07171 87 12 0
nuSub XW-1200
- Unrivalled: Compact high-performance active subwoofer with 420 watts
- Abysmal: 19 Hz lower cut-off frequency for almost perfect bass response
- Convenient: Easy and reliable control via app
- Adaptable: Effective X-Room Calibration for clean bass without the disruptive influence of the listening room
- Impressive: Large 32 cm bass driver with long excursion
- Elegant: Minimalist, sophisticated design with high-quality finish
- Flexible: Suitable for all applications
- Connective: High flexibility thanks to Nubert X-Connect compatibility
Perfect bass performance
The empirical knowledge gathered by Nubert engineers over decades has resulted in the nuSub XW-1200, Nubert's current flagship subwoofer. With a maximum possible low frequency response of 19 Hz, this top-of-the-range model achieves an absolute best value despite its relatively compact dimensions. Thanks to its powerful 420-watt amplifier and long-throw 32 cm downfire chassis, the component also delivers extremely powerful performance in the lowest frequency ranges. With its deep matt lacquer finish and elegant housing with rounded edges, it also looks perfectly at home in the living room. Of course, with X-Connect compatibility and X-Room Calibration, it offers all the advantages and features of the Nubert subwoofer portfolio.

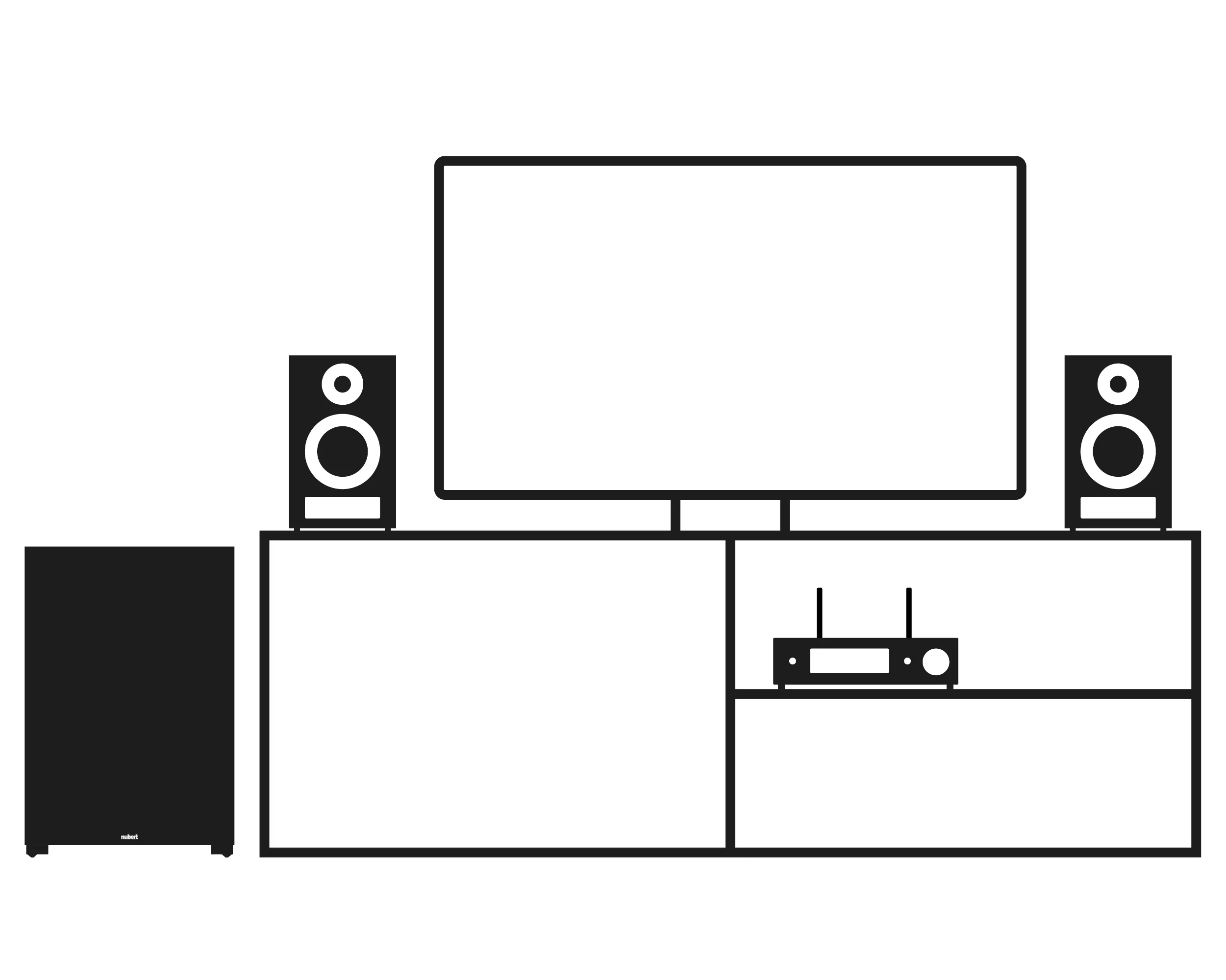

2.1 sound system
Our subwoofer is ideal for setting up a 2.1 system in combination with the nuConnect ampX. Here, the speakers and subwoofer are synchronised to play in perfect harmony.

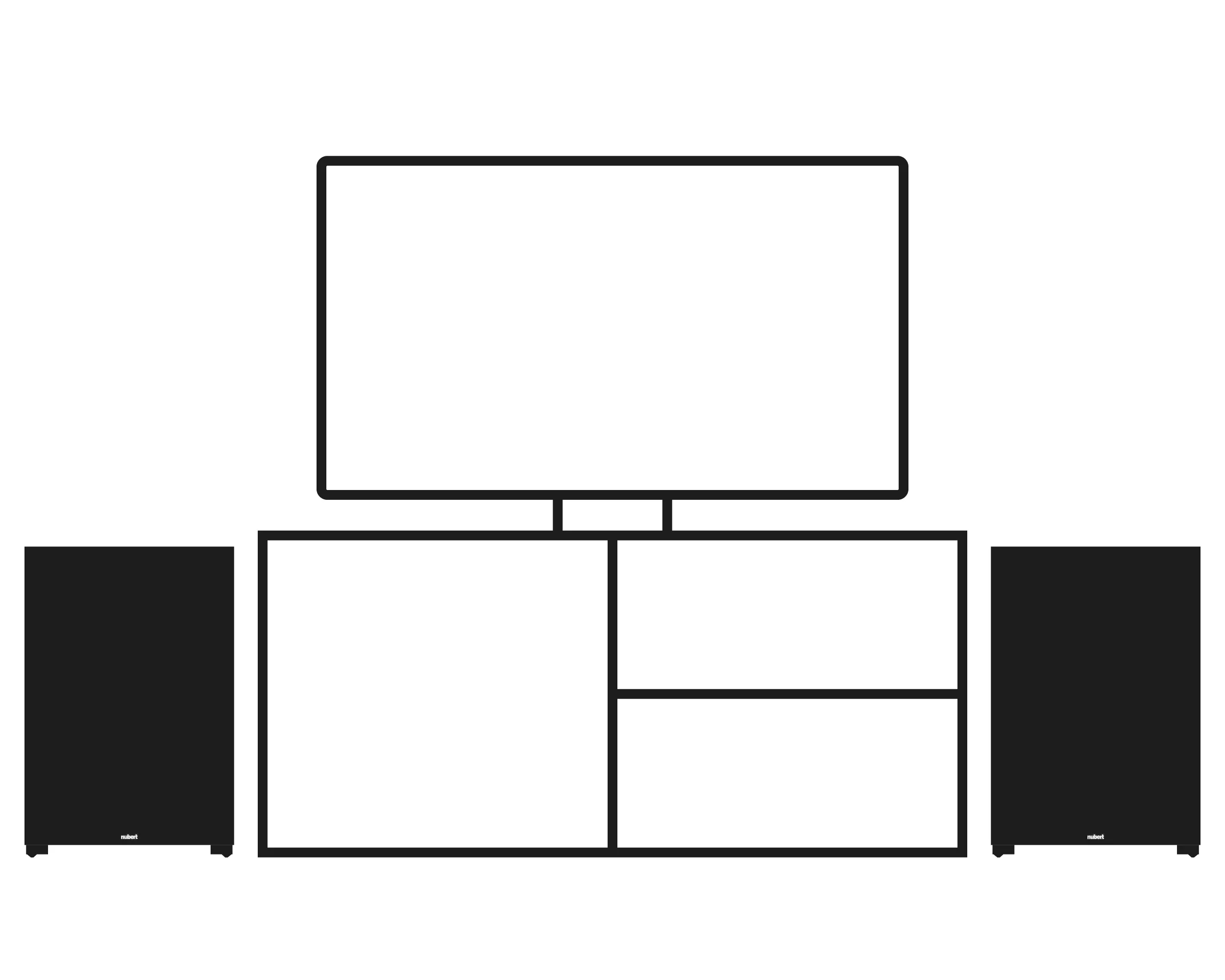

Even more bass
The XW-1200 is the first choice when the focus is clearly on home cinema. The subwoofer is also ideal for setting up multi-subwoofer solutions (e.g. SBA). So nothing stands in the way of a 7.2.4 system.

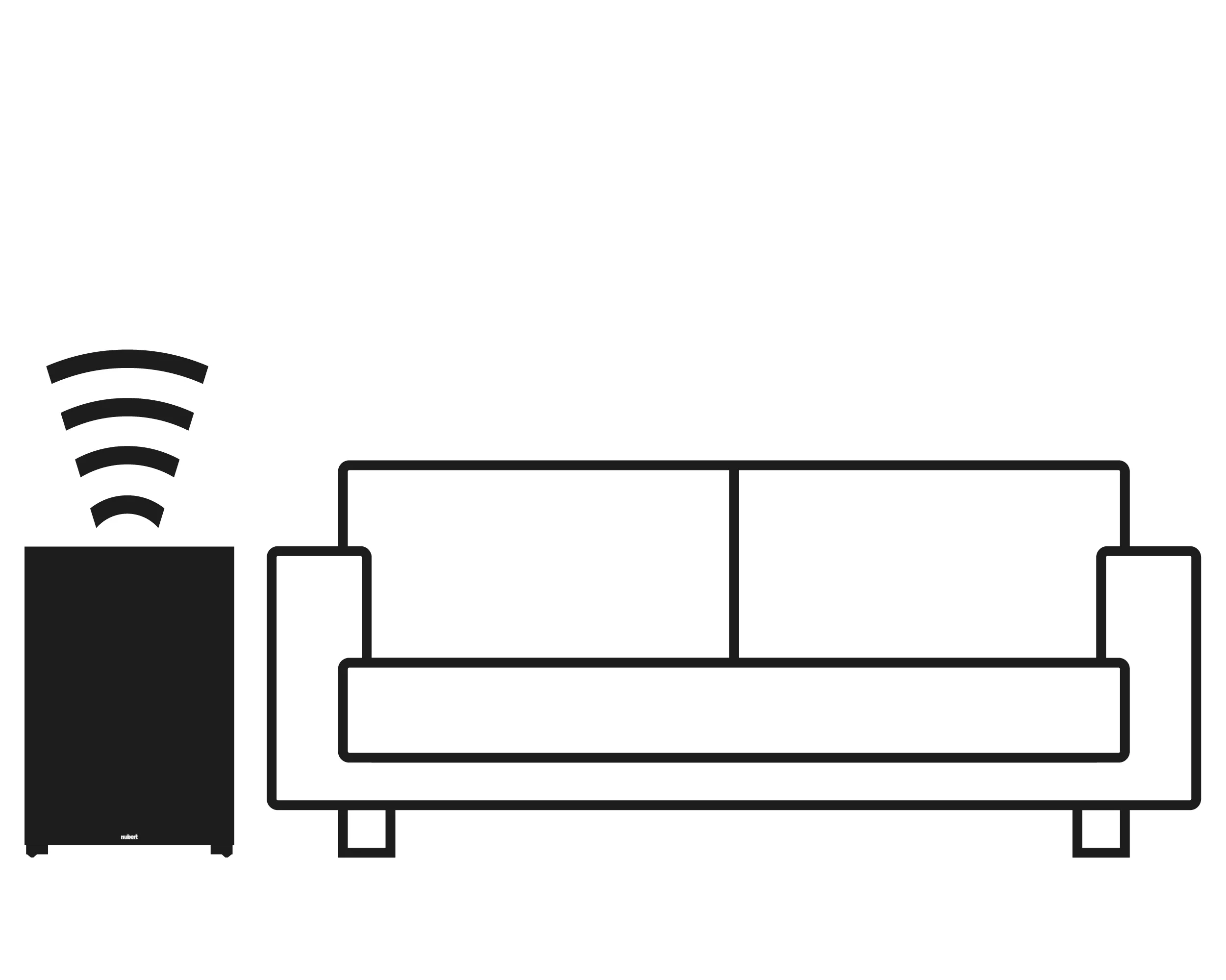

Wireless Connection
A subwoofer that produces such deep bass benefits greatly from optimal positioning in the room. With its wireless connection via X-Connect or X-Connect Surround, the XW-1200 offers maximum flexibility in terms of placement.

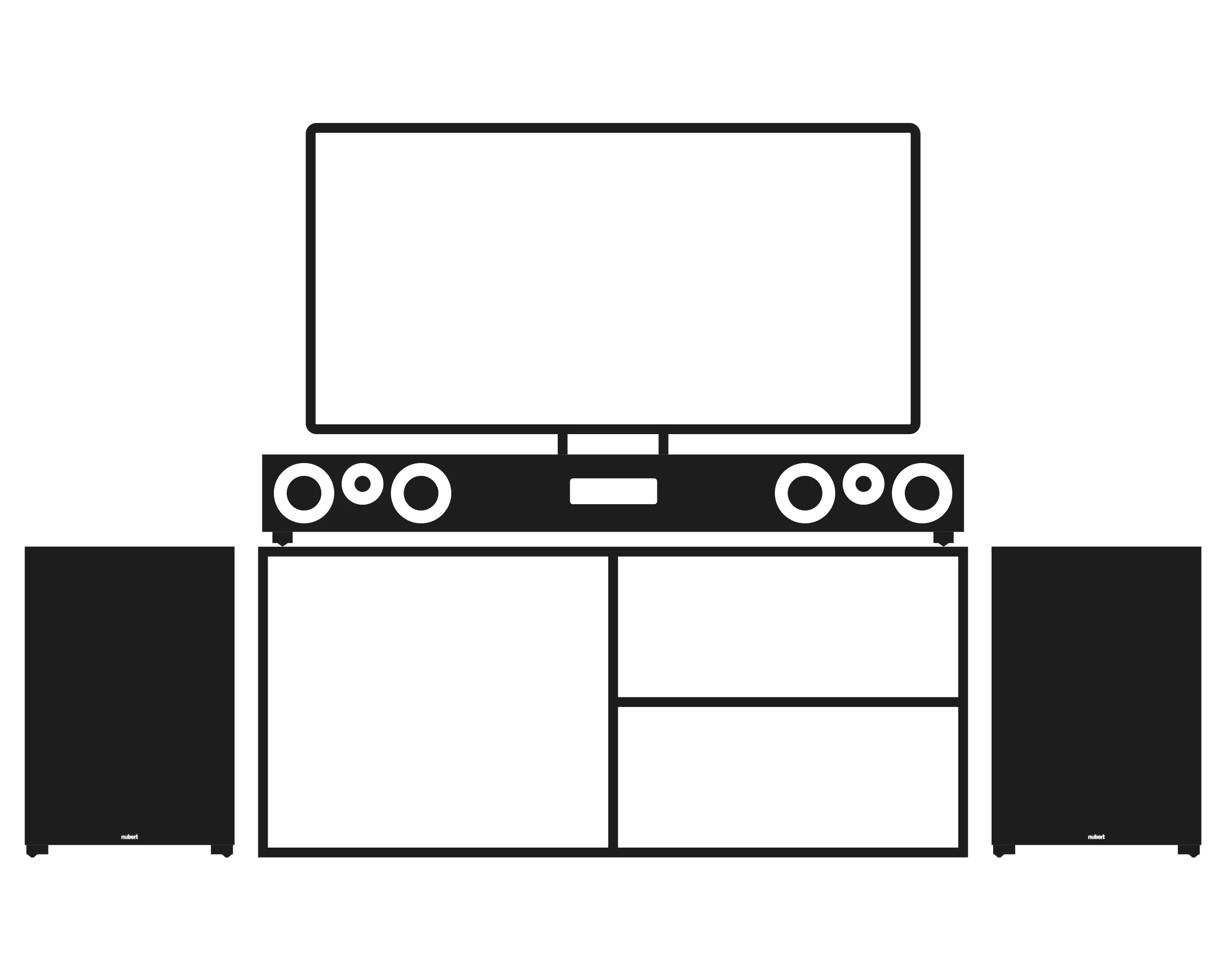

The XW-1200 in a set
Is the bass response of our XS-8500 RC not enough for you? Then one or two XW-1200s are the solution. We have already preconfigured suitable sets that are ready to go.
Details

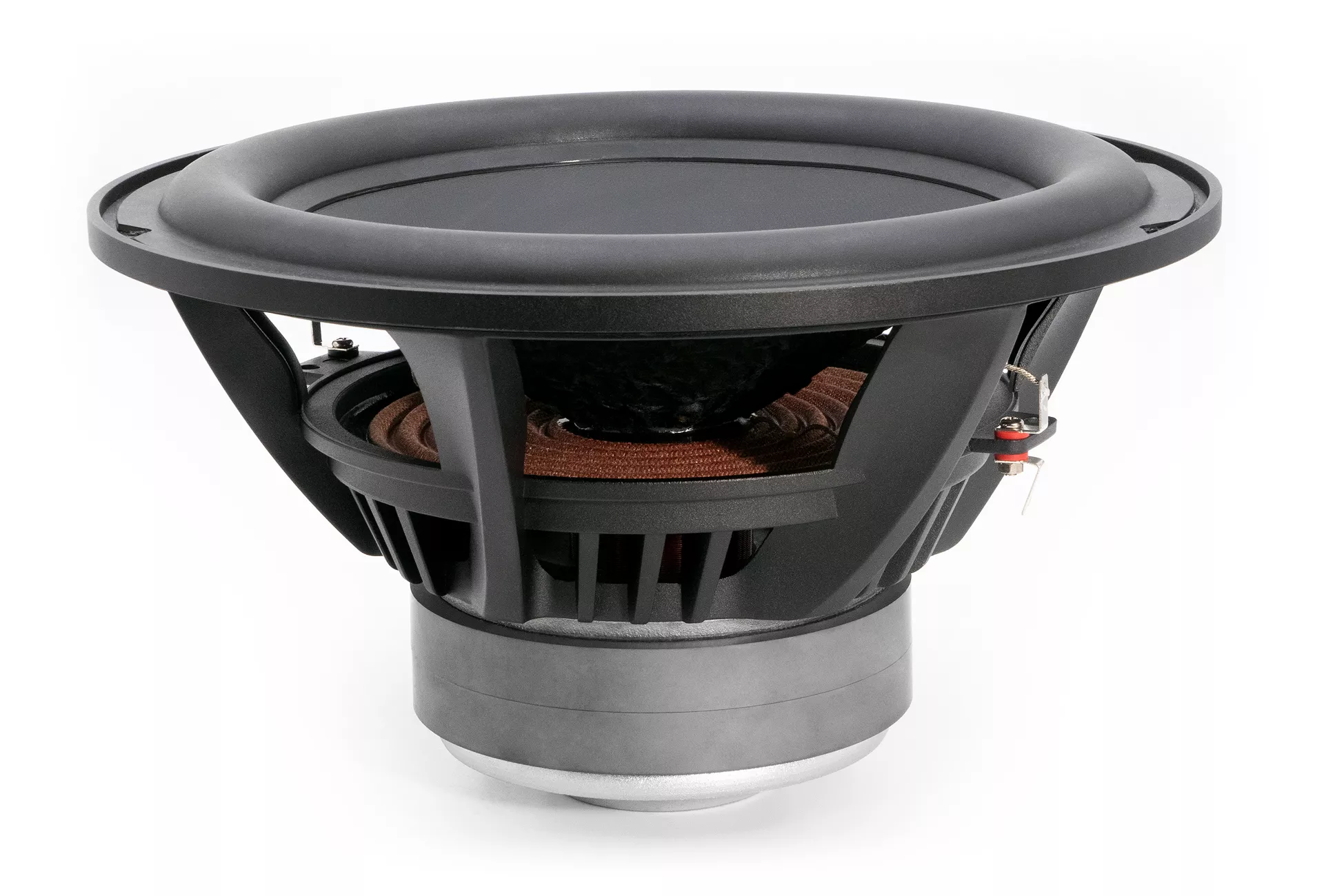

High performance driver
The 12-inch driver was developed according to our requirements: high efficiency, high maximum excursion, low resonance frequency and precisely tuned to the parameters of the bass reflex enclosure. Your advantage: a subwoofer that combines depth and precision and ideally converts the available amplifier power into acoustic performance.
X-Connect und X-Connect Surround
Freedom for the woofer. The nuSub series can receive both X-Connect and X-Connect Surround and can therefore be directly connected wirelessly with many Nubert devices. By means of nuConnect trXS, the wireless technology can also be retrofitted to other systems. Your advantage: stable connection and free placement of the subwoofer.
X-Remote
Our subwoofers don't have an included remote control, because your smartphone takes care of that. Our Nubert X-Remote app works with the power-saving Bluetooth LE standard and provides access to all functions of the subwoofer. Your advantage: full control at all times and no more aiming necessary.
X-Room Calibration
Your smartphone is also the heart for our calibration function X-Room Calibration, which automatically corrects the bass by ± 6dB in the range of 20 to 160 Hz with fully parametric equalizers. IOS devices serve directly as a microphone for the algorithm, Android devices require an additional microphone due to different hardware equipment. Your advantage: Better bass reproduction for your listening position.

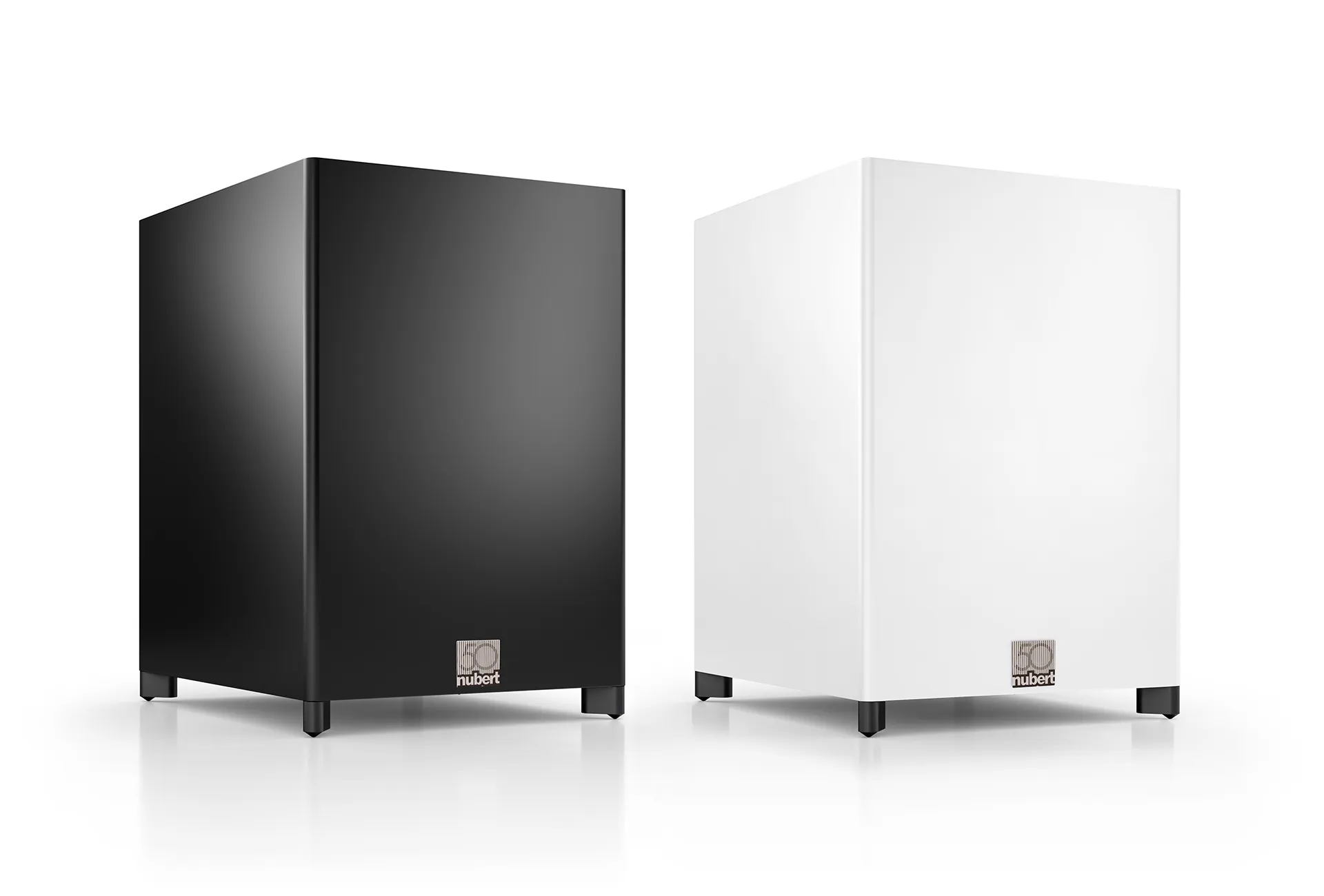

Colours
Our nuSub models are silk-matt and multi-layer lacquered. The choice is yours: White for a subtle look in the living room or timeless black as a statement for the home theater?

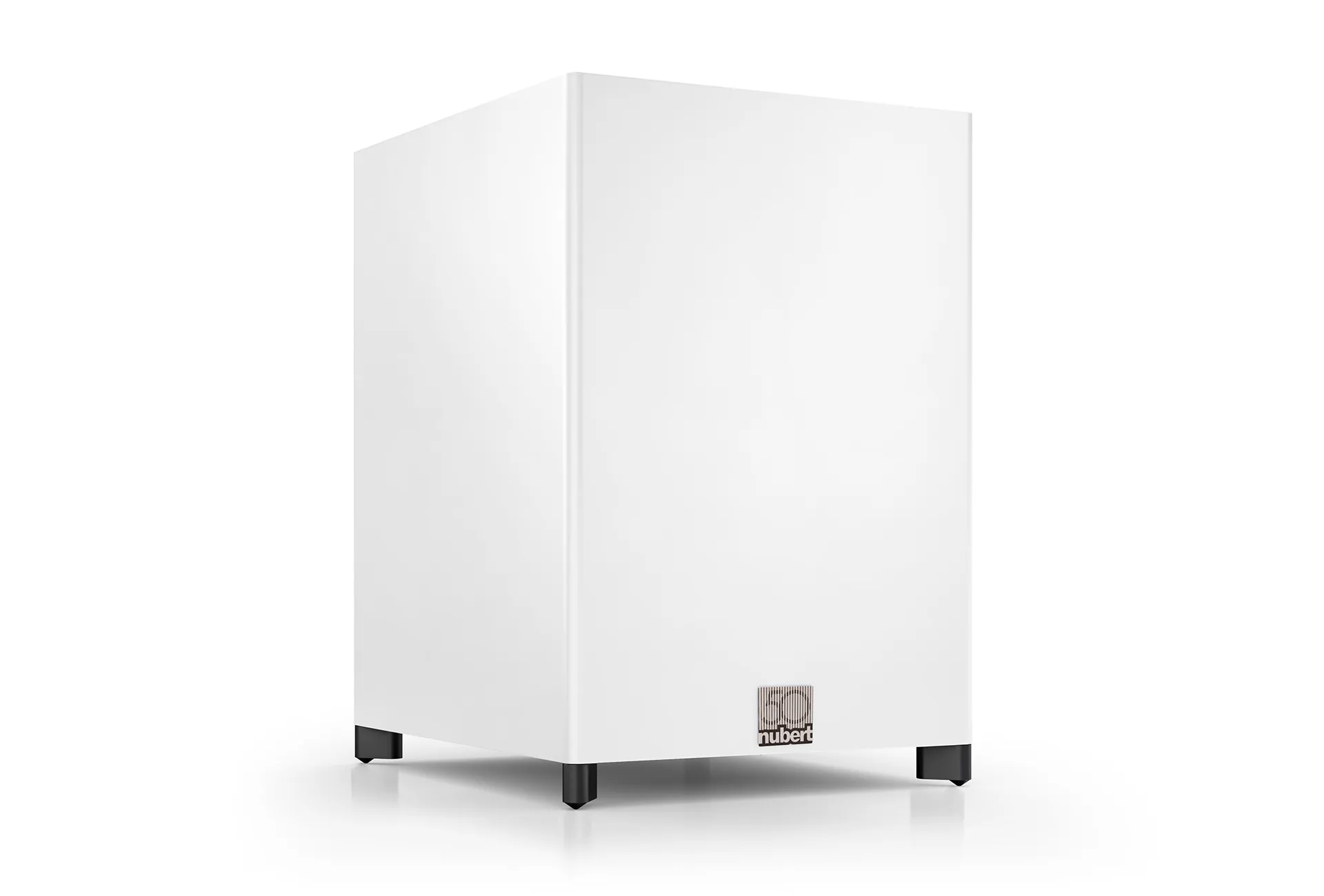

Design
The trend is towards greater integration into living spaces and a more inconspicuous appearance for loudspeakers. The design brief was therefore clear: a clean front with gentle curves. The result is a subwoofer that could be mistaken for a seat cube and blends in discreetly.

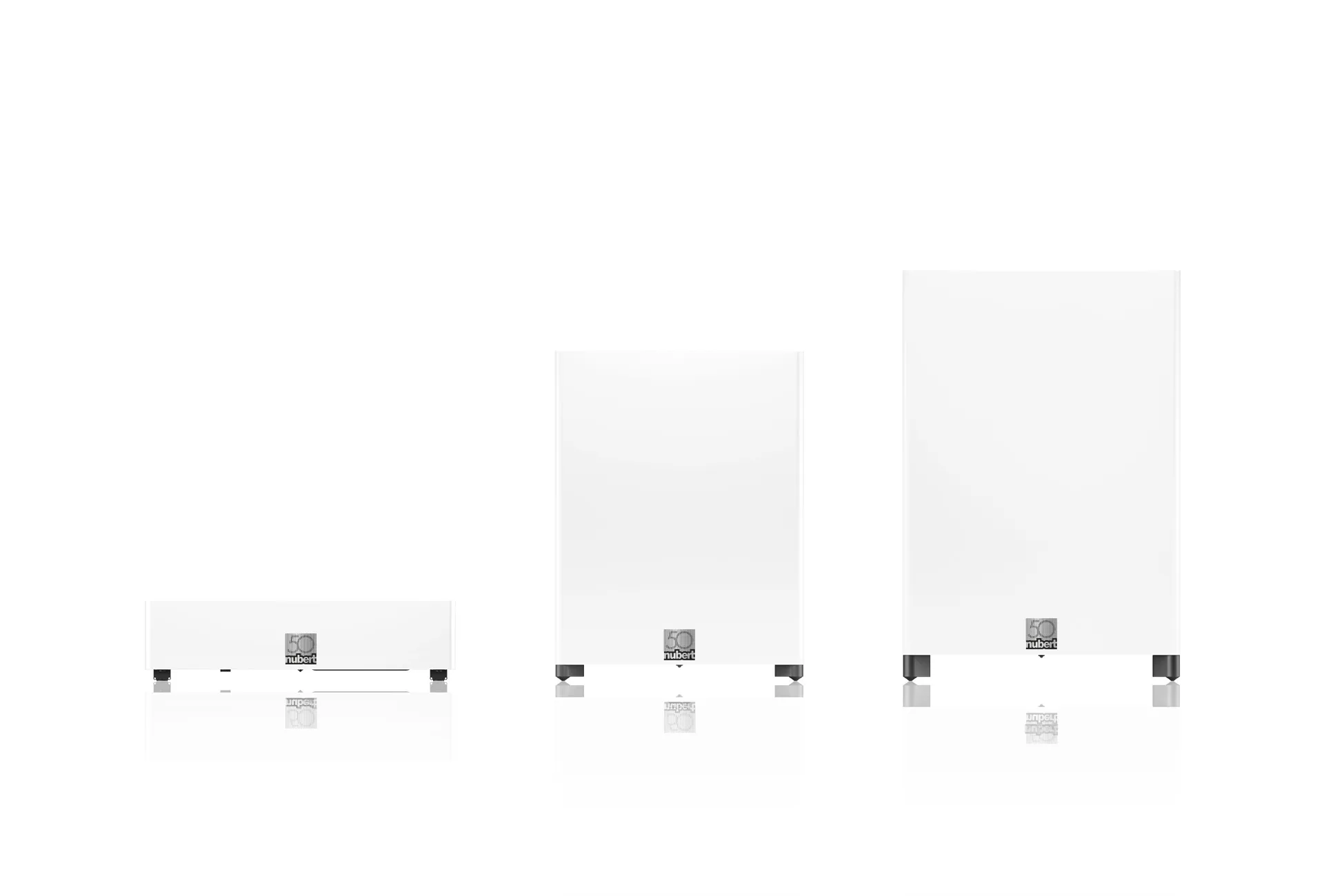

Series overview
Our nuSub series consists of 3 models, is the latest generation of our woofers and relies on downfire technology. The subwoofers are controlled via the Nubert X-Remote app and can be calibrated to the room via X-Room Calibration from your smartphone. In addition, all subwoofers can also be controlled wirelessly via radio.
Safety Instructions
Nubert electronic GmbH
Nubertstraße 1, 73529 Schwäbisch Gmünd, Deutschland
Email: info@nubert.de Phone: +49 07171 - 8712-0
Safety Instructions
The entire operating manual, in particular the safety instructions, must be read in full before connecting and commissioning the device. For your own safety, be sure to follow all warnings and safety instructions in this manual and on the speaker. The user is not permitted to carry out any work on the loudspeaker other than the described work. Keep this document so that you have access to it at all times. Furthermore, it must also be handed over to possible re-owners.
Intended Use
This speaker is designed exclusively for sound reproduction in dry rooms. Use the speaker only as described in this manual. Any other use (particularly safety-relevant or medical use, installation in open environment like IP-certified products) is considered improper and may result in property damage or even personal injury. Nubert electronic GmbH does not assume any liability for damages caused by improper use.
General Information
- Never operate the loudspeaker unattended!
- Danger of electric shock! To avoid the risk of electric shock, the speaker may not be opened by the user. There are no user-serviceable parts inside the speaker. Service work and repairs are reserved for qualified specialists authorized by Nubert. If you need service, please contact Nubert electronic GmbH directly (info@nubert.de)!
- Danger of suffocation! Never let children use or play with neither speaker, remote control or packaging unattended. There is a risk that children will get caught in the packaging film and suffocate. Make sure that children cannot remove any small parts from the devices! These parts, like the remote control battery, could be swallowed and cause suffocation. In case of swallowing any parts, contact a doctor immediately.
- Danger of injury or damage! When moving the speaker, take care to avoid injury and damage!
- Caution! Since the speaker can only be completely disconnected from the mains at the mains input on the rear of the unit or by pulling the mains plug from the socket, it must be positioned so that you have free access to the mains input or mains plug.
If any of the following situations occurs, the loudspeaker must be switched off immediately and disconnected from the mains:
- The speaker has been damaged or has fallen down.
- Power cord or plug is damaged.
- Objects or liquid have got into the loudspeaker.
- The speaker has been exposed to excessive moisture or rain.
- The speaker does not work properly or exhibits a significant reduction in performance.
- The loudspeaker smells burnt, develops smoke or makes unusual noises.
Caution!
The driver in this loudspeaker produces a strong magnetic field in its immediate vicinity that can affect or damage other equipment close by. It is therefore imperative that you keep magnetically sensitive devices and items away from the loudspeaker. Never place CRT screens, notebooks, hard drives or similar on the loudspeakers!
Only use accessories recommended by Nubert!
Installation Instructions
Caution!
An unstable location can damage the speaker.
- Only place the loudspeaker on a flat, stable surface and make sure that it cannot be knocked over!
- Also make sure that no unintentional pulling can occur on the cables to avoid knocking over the speaker or damaging the connection sockets!
- Keep strong mechanical shocks away from the loudspeaker!
Caution! Excessive heat build-up inside the unit can shorten its service life or lead to fire.
- Never cover the back of the speaker! Make sure that there is a clearance of at least 10 cm and sufficient air circulation in the back area!
- Do not operate the speaker and remote control near heat sources such as radiators or stoves!
- Do not set the speaker and remote control to direct sunlight.
- Do not expose to direct sunlight!
- Never place burning candles or similar open fire sources on the loudspeaker!
Danger of Explosion!
Installation in unsuitable locations can cause explosions. Do not use the speaker or remote control:
- In environments where there is a risk of fire or explosion!
- At extremely low or extremely high temperatures!
- Near flammable gases or vapours!
- Near strong dust!
- Near flammable materials!
Danger of Electric Shock!
The loudspeaker carries mains voltage and voltages higher than 35 V AC or DC inside. It has no special protection against the intrusion of liquids or objects into the system. There is therefore a risk of lethal electric shock.
- Never touch the speaker with wet hands!
- Only use the speaker in a dry place!
- Do not operate it outdoors or in damp rooms!
- The loudspeaker must be protected from liquids of all kinds, including dripping and splashing water.
- Do not place any containers containing liquids (e.g., flower vases) on the speaker or in the immediate vicinity!
- If the loudspeaker is moved from a cold environment to a warm room, condensation may form inside the unit. Wait at least six hours until the loudspeaker has reached room temperature and is dry before switching it on!
- No objects or foreign bodies may get into the device.
- Should the loudspeaker come into contact with liquids or should objects have got inside, please unplug the mains plug immediately and contact Nubert electronic GmbH (info@nubert.de)!
Danger of Injury or Damage!
For speakers with threaded bushings on the underside:
- The threaded bushings may be used for upright mounting of the loudspeaker on suitable base plates only.
- The threaded bushings on the underside of the loudspeaker enclosures are not designed for tensile loads and must therefore not be used as holders for hooks or similar devices in order to suspend the loudspeaker cabinet.
- A falling speaker may cause serious injury and damage.
Connection Instructions
General Connection Instructions
- Disconnect the mains plug before changing any wiring on the system!
- Make sure that all connections have been made correctly and that all plugs are firmly seated in the sockets before connecting the speaker to the mains.
- Use only the intended cables or plug connections for the connections! Failure to do so may result in damage or malfunction.
- If you want to disconnect connections on the loudspeaker, always pull the plug, never the cable!
- Ensure that all plugs are firmly seated in the sockets!
- Only use cables and accessories recommended by Nubert!
Danger of Electric Shock!
Faulty mains supply systems or excessive mains voltage can lead to electric shocks.
- All power supply or antenna systems connected to the loudspeaker must comply with all applicable laws and regulations and be professionally installed by an approved installation company.
- Use only the appropriate power cord to connect the speaker. Do not modify the power cord or its plug.
- Make sure that the mains voltage at your location matches the requirements of the loudspeaker! The correct power supply can be found on the label on the back of the speaker. It must not be connected to other power supplies.
- Devices of Class 1 construction must be connected to the mains power socket outlet with a protective earth connection. Make sure that the installation of the protective earth is carried out correctly!
- When laying the power cables, make sure that they cannot be damaged (e.g., by heating or mechanical stress)! Pay particular attention to the areas of the connectors and distributors!
Caution!
Overvoltage in the power supply system (e.g., due to lightning) can damage or destroy the device and power supply unit.
- An overvoltage protection element can provide a certain degree of protection against excessively high voltages in the power grid.
- The greatest possible protection against damage can only be achieved with the complete separation from the mains supply. In case of thunderstorms or danger of lightning strikes, disconnect the mains cable from the socket and any antenna plugs from your hi-fi system!
- If the speaker is not used for a long period of time or is unattended, the power supply should be disconnected. Disconnect the mains plug from the socket!
Care and Cleaning Tips
Caution!
Improper handling of the speaker may result in damage.
- Always unplug the speaker before cleaning it!
- Before recommissioning, make sure that all connections are correct, that there are no short circuits and that the speaker is completely dry.
- Never use strong cleaning agents or solvents such as petrol, spirit or similar!
Enclosure
We recommend commercial window cleaner sprayed onto a cotton cloth. This allows almost all fingerprints and dust to be easily removed. Alternatively, you can also use window active foam.
We advise against the use of microfibre cloths! These can cause mini scratches in the surface.
Diaphragms and Speaker Chassis
To remove dust from a loudspeaker chassis, a lint-free cotton cloth is sufficient to wipe the membrane lightly with very little pressure.
Committed to honest sound
We are a German company that has been developing and selling speakers directly for 50 years. We stand for neutral reproduction so that you receive exactly the same signal that is present on the source. We add nothing and leave nothing out. We promise! You can find more information about our philosophy here.
There's more to Nubert
We develop all nuSub models in Schwäbisch Gmünd. Our engineers optimise every detail, from the housing and drivers to the sound tuning. Once series production has started, all nuSub models are tested by us in Schwäbisch Gmünd for appearance, technology and sound so that you receive a perfect product.
This product as 2nd choice
In some installation locations - for example with rearspeakers behind a curtain - the visual appearance plays a subordinate role, but the function must be guaranteed without restriction. Here, our 2nd choice is the ideal solution for price-conscious customers. These are exhibition items, customer returns or discontinued models with minor signs of use, but which have been technically inspected by our service department. We also give a full 2-year guarantee on the 2nd choice.
Your purchase, our service
Whether before or after you buy, our customer service is here to help. If you have any questions about products, your order, returns or installation, our expert support team will help you quickly and easily. By email or phone, if you prefer. Because good service makes all the difference.
Listen to it now in our stores!
Test results
We are awarded. And proud of it.
Highlight und Heimkino-Tipp
High End-Audio kabellos
Ausgezeichnetes Heimkino-Universum
Platz 2 „Lautsprecher & PA-Systeme“
Cleveres Subwoofer-Flaggschiff
Würde ich mir sofort ins Wohnzimmer stellen
Rundum gelungener Allrounder - Preistipp!
Ein überaus potenter Sub für anspruchsvolle Bass-Enthusiasten
nuSub-Serie: perfekter Bass in jeder Größe - Testurteil 94%!
Mächtig, kontrolliert und bei Bedarf brachial. Preistipp!
Hochpotenter Subwoofer - das Maß der Dinge
Extrem leistungsstarker Downfire-Subwoofer zum fairen Preis - Masterpiece!
Accessories
We not only build exceptional loudspeakers and electronics, but also offer the matching accessories. So you can find everything useful for our products, from cables to adapters.
Our recommendations
Not the right one? We recommend taking a look at related products that you might like.
Downloads
FAQ
Questions about subwoofers
The requirements of our customers have changed over time and are increasingly moving towards greater living room integration. Therefore, the move from frontfire to downfire woofers came about at the request of our customers.
If you want to use an Android smartphone with the X-Room Calibration, you need our XRC Android interface. This is necessary because the different phone manufacturers use different microphones, drivers and operating system versions. Due to the separate microphone, we can guarantee a good result.
Reviews
Login
Honest speakers - Honest reviews
Satisfied? Or can we do something better with our products? Then write us your review. Simply log in to your account and write the review of your order here.
Here with us, every review is checked for authenticity and is then approved. So you can be sure that the feedback you give us about our products is genuine.
12 May 2025
nuSub XW-1200
Es sind jetzt ein paar Wochen seit dem ich den nuSub XW-1200 gekauft habe. Ein extrem tiefer Bass und sehr kraftvoll! Kann den Subwoofer jedem zu 100% empfehlen. Preis-Leistungsverhältnis ist absolut in Ordnung! Vielen Dank an den Hersteller und bitte weiter so!
22 March 2025
nuSub- 1200
Ja was soll man da anderes sagen als einfach nur wieder mal ein top Produkt, wie auch das komplette nuline-System die 264,24, CS-174 oder auch WS-14 der Sub XW-1200 hat so einen kraftvollen Bass, der aber nicht unangenehm übertönend oder dröhnend ist. Ich hatte erst den XW-900 jetzt sind beide in betrieb natürlich muss hier etwas angepasst werden, da es nicht 1/1 die selben Modelle sind von der Leistung aber sie passen auf jeden Fall sehr gut zusammen. Ich kann beide Subs nur empfehlen top Geräte!
19 June 2022
Leider kein Subsonic Filter einstellbar
Ich bin mit dem XW-1200 sehr zufrieden, habe jetzt schon 2 davon. Lediglich vermisse ich einen Subsonic Filter da ich gelegentlich Vinyl höre. Hier wäre ein zuschaltbarem Filter für alles unter 15Hz sehr hilfreich. In der App habe ich auf jeden Fall nichts gefunden, oder habe ich etwas übersehen? Danke und Gruss
4 April 2022
Kraftpaket auf hohem Niveau
Man nimmt sich sehr viel Zeit für den Kunden und man wird umfassend beraten. Extrem freundlich und Kundenorientiert, haben mich bereits zweimal gut beraten. TOP Service! Freundlich, kompetent und hilfsbereit. War mir bis da aber immer noch unsicher soll es wirklich ein Downfire werden?, hatte ja schon wirklich einige Frontfire Subs Namhafter Hersteller hier am Start aber nicht einer konnte meine Erwartungen zufrieden stellen und auch das Thema Raummoden war hier ein großes Problem. Also Bestellt und nach 2 Tagen kam schon das Monster hier sicher verpackt an, was soll ich sagen Einmessung über die Nubert x Room calibration danach noch das dspeaker anti-mode 8033 s-ii sowie zum Schluss mit Audyssey multeq xt32 und dann bekam ich ein Grinsen im Gesicht in Begleitung von Gänsehaut. Sowas Druckvolles und Extrem präzises, trocken und mit viel Druck werden die Bässe hier in den Raum gedrückt, dass einfach unglaublich ich bin nur begeistert. Das ist was ich gesucht habe, auch die Befürchtung das der XW1200 für mein ca.27qm Wohnzimmer zu groß und überdimensioniert ist hat sich überhaupt nicht bestätigt. Ich bereue es auf keinen Fall ihn gekauft zu haben, ein Dankeschön an das Nubert Team das ist ganz großes Kino.
24 February 2022
Ab in den Bass-Keller...
Nach zwei Tagen geliefert und wie bereits von Nubert gewohnt: Sehr sicher verpackte einwandfreie Ware! Nachdem der erste Versuch nicht klappte, den Sub in mein bestehendes Boxenpaar X-8000 wireless einzubinden rief ich die Nubert-Hotline an. Innerhalb einer halben Stunde meldete sich eine nette Dame zurück und wir kamen sehr schnell an den Punkt, dass ich merkte: "Mist, ich habe doch die Boxen mit dem Coax-Kabel verbunden...". Habe mich bei der Dame entschuldigt und dann den Sub innerhalb von einer Minute eingebunden. Ein wertvoller Tipp war den Slave der X-8000er stromlos zu schalten, während das Pairings zwischen Sub und dem X-8000-Master vorgenommen wird. Da der Raum (etwas über 30 m2) nur zwei Aufstell-Positionen zulässt, war auch der Standort sehr schnell geklärt, da ein Standort deutlich besser war als der andere. Habe die Übernahmefrequenz erst einmal auf 75 eingestellt und die Lautstärke auf -6. Es wird ja immer geschrieben, wer die X-8000 betreibt, benötigt keinen Sub. Na ja, ich kann nur sagen: Die Urgewalt des XW-1200 muss man live erlebt haben... Heute mal den ersten Film mit XW-1200 Bass-Untermalung gesehen...alter Schwede...was für Bass-Fundament. Aber: ist halt Geschmackssache, wieviel Bass man gut findet...ich finde es einfach nur geil :-) Einziger Nachteil: unauffällig lässt sich der Trümmer nicht in unsere Möblierung integrieren...zumal er ca. 1 Meter von der Wand weg steht.
24 February 2022
Unglaublich !!!
Absolute Begeisterung von der ersten Sekunde an. Auch wenn der XW900 vor Ort einen sehr guten Job gemacht hat, so war der XW1200 einfach nochmal druckvoller. Vielen Dank nochmal für den Klasse Service angefangen von der Studio Reservierung bis zur Demonstration vor Ort. 400KM Fahrtweg war das allemal wert !!!!
26 January 2022
tief und gewaltig
Hallo ????????? top, der Sub XW-1200! Ich habe schon etliche verschiedene Modelle im Gebrauch gehabt. Beispielsweise auch von stark namhaften amerikanischen Herstellern. Aber ich muß sagen das ich sehr positiv überrascht bin von eurem kleinen großen Meisterwerk! Hut ab an die Ingenieure die da dran gearbeitet haben. Respekt! Das Ding haut die tiefsten Bassgewitter durch den Hörraum. Und alles total entspannt und sauber. Wirklich perfekt ? Bin begeistert! Danke ???
25 November 2021
Familienzusammenführung
Vor einiger Zeit erhielt ich meine nupro x-6000 rc und war (bin es immer noch) absolut begeistert. Nun habe ich mir noch den xw-1200 gegönnt und bin endlich gefühlsmäßig am Ende einer längeren Suche angelangt. War der WAF (Womens Acceptance Factor) bei den nupro x-6000 rc noch erfreulich hoch, war ich diesmal leicht nervös, wie meine heimische Regierung auf diesen doch recht üppigen Familienzuwachs reagieren würde. Ich war hin und hergerissen, den xw-1200 oder seinen kleineren Bruder xw-900 zu bestellen. Aber ich wollte endlich genau die Anlage ohne Kompromisse, an der ich mich erfreuen kann, ohne im Hinterkopf die nagende Frage zurück zu behalten "Wäre es mit dem Großen nicht doch besser gewesen?" Also bestellt, hingestellt, nett die heimische Botanik drum herum drapiert und mit angehaltenem Atem das Urteil der weltbesten Ehefrau erwartet. Anfängliche Skepsis konnte ich spontan durch einen umwerfenden Sound bei geringer Lautstärke entkräften. Der Sub drückt ein sehr präsentes Fundament in den Raum, dass die Musik wirklich spürbar werden lässt. Schnell wurde die Neuerwerbung abgenickt, und die finale Frage, ob denn jetzt mit dem ewigen Lautsprecherkauf und Wechsel Schluss sei, konnte ich voller Überzeugung bejahen. Endlich habe ich meine Traumanlage...ich kann mir wirklich nicht vorstellen, wie der Sound, den ich jetzt bei Musik und Filmen erlebe, noch verbessert werden könnte.
6 September 2021
nuSub XW
Hallo Nubert-Team, vielen Dank für das perfekte Fundament - der nuSub XW-1200 macht aus meiner Anlage endlich ein Heimkino. Nicht aufdringlich, aber immer da. Der kleine AW-441 kam mir damals schon "mächtig" vor und hat stets gute Leistung erbracht. Der 1200er liefert aber endlich richtigen Bass! Danke auch für die super flinke Lieferung Mo bestellt und Mi geliefert....
22 August 2021
Überragend
Ich weiß schon von den NuVero 7 und 70, welche Wunder Nubert vollbringt. Auch weiß ich, was 4 AW-1100 in einem separaten Heimkino zu leisten vermögen. Umso mehr fragte ich mich, ob der Wechsel zu downfire Subwoofern wirklich die richtige Entscheidung war, da ich vor einiger Zeit mal einen downfire Sub in Betrieb hatte und dieser in Sachen Präzision leider nicht glänzte. Doch da meine NuVeros im Wohnzimmer noch Unterstützung bekommen sollten, habe ich mich an den XW-1200 herangetraut, da ich schon viel gutes über ihn gelesen hatte. Und mich hat regelrecht der Schlag getroffen, als ich ihn nach der Einmessung mit einem älteren iPhone (das XRC Android Interface bereitet bei mir aktuell noch Probleme, an dessen Lösung Nubert dran ist) in Betrieb genommen habe. Hier höre ich den ersten downfire Subwoofer, dem man das downfire Prinzip in keinster Weise anhört. Extrem präzise, schnell, trocken und mit viel Nachdruck werden die Bässe hier in den Raum gedrückt, dass ich einfach nur begeistert bin! Im Musikbetrieb werden die NuVero 70 hervorragend unterstützt, ohne sich in den Vordergrund zu drängen oder den Bass verschwimmen zu lassen. Bis auf einer stärkeren und tieferen Basswiedergabe bemerkt man nicht, dass hier ein Subwoofer mitarbeitet. Und wer die NuVero kennt, weiß, dass es keine leichte Aufgabe darstellt, bei dessen Dynamik mitzuhalten. Top! Im Filmbetrieb sorgt der Sub für eine enorme Wucht und einen Grundton an Bass, wie man es sich im Kino wünscht. Egal wie wild das Geschehen ist, der XW schafft es, alle Nuancen fein herauszuarbeiten und packt blitzschnell zu, wenn es nötig ist und sorgt sowohl im Frequenzkeller als auch im Oberbass immer für spürbaren Druck, ohne zu dröhnen. So schnell er zupackt, so schnell erstummt er auch wieder. Genau so wünsche ich mir das! Nicht unerwähnt bleiben sollte auch, dass ihr hier den ersten Subwoofer stehen habe, der im standby nicht den geringsten Ton von sich gibt. Kein brummen oder summen, wie man es von den meisten Subwoofern gewohnt ist. Ein großer Pluspunkt! Alles in allem hat Nubert hier mal wieder bewiesen, dass sie ihr Handwerk verstehen. Meine Vorurteile gegen downfire Subwoofer hat der XW-1200 in Luft aufgelöst. Kaum zu glauben, dass dieser Sub günstiger ist als es der AW-1100 war. Sowohl klanglich als auch im Sachen Verarbeitung hat mich der Sub mehr als überzeugt. Und dank des Designs fügt er sich im Wohnzimmer gut ein. Danke an Nubert für die schnelle Lieferung und die gewohnt überragende Qualität!
Technical information
| Device type: | Subwoofer |
|---|---|
| Width: | 40,5 cm |
| Height: | 59,8 cm |
| Depth: | 48,0 cm |
| Weight: | 29,6 kg |
| Packaging dimensions (W x H x D): | 62,0 cm x 54,0 cm x 76,0 cm |
| Shipping weight: | 36,5 kg |
| Maximum power input: | 400 W |
| Standard colour: | Black |
| Color: | Multi-coat Lacquer Black |
| Scope of delivery: | nuSub XW-1200, height-adjustable feet, mains cable 3.0 m, Y-subwoofer cable 3.0 m, operating instructions |
| Country of origin: | China |
| WEEE-Reg. No.: | DE 48888173 |
| Construction Method: | Bass reflex |
| Construction: | Direct radiator |
| System: | 1-way |
| Woofer: | 1x 320 mm |
| Woofer material: | Made paper |
| Lower cut-off frequency (-3 dB): | 19 Hz |
| Upper cut-off frequency (-3 dB): | 120 Hz |
| Lower cut-off frequency (-6 dB): | 19 Hz |
| Upper cut-off frequency (-6 dB): | 140 Hz |
| Protection: | Soft clipping function |
| Signal propagation time (single/pair mode): | 5,8 ms |
| Signal throughput time (wireless mode): | 25,7 ms |
| Continuous power: | 360 W |
| Pulse power: | 420 W |
| Power amplifiers: | 1 |
| App control: | Nubert X-Remote |
| Operation on the device: | Rotary control |
| Bluetooth: | Yes |
| Audio cinch inputs: | 1 |
| Nubert X-Connect: | Receive |
| Nubert X-Connect Surround: | Receive |
| Bass/treble control: | Nubert sound control |
| Calibration system: | X-Room Calibration |
Box type, sound and recommended use
If only the best is good enough, then the nuSub XW-1200 is exactly the right choice. With over 400 watts of impulse power and a lower cut-off frequency of 19 hertz, the largest and most powerful subwoofer in the nuSub series achieves impressive performance values, enabling it to master even the most demanding tasks with ease. Whether as a powerful effects device in a home cinema, as a soundbar support in a class of its own, in a wireless sub-sat system with compact speakers or as a partner for a high-end hi-fi system: the nuSub XW-1200 is recommended wherever there is a desire for maximum depth and earth-shattering bass impulses.
Thanks to its new amplifier module with higher continuous and music power, generous power supply reserves and, above all, its powerful 32-centimetre diameter low-frequency driver with ultra-wide excursion, the nuSub XW-1200 unleashes breathtaking low-frequency thunder or underscores living room concerts with harmonious undertones – depending on the application and sound material. In fact, the nuSub XW-1200 even surpasses the performance of the legendary nuLine AW-1100, which has won the ‘Subwoofer of the Year’ award from various trade magazines several times (see test references).
The nuSub XW-1200 scores with all the advantages of its more compact siblings, including the elegant, living room-friendly downfire design, convenient operation via smartphone app and wireless control via radio connection. Either an amplifier or active loudspeaker from Nubert's X generation (e.g. nuConnect ampX, nuXinema preAV, nuPro XS, etc.) or the nuConnect trXS serves as the transmitter. With this practical wireless module, even older AV receivers or stereo amplifiers can be made fit for the wireless age. Several nuSub woofers can even be operated simultaneously to achieve the most even and harmonious low-frequency distribution in the room. Alternatively, the nuSub XW-1200 can be easily connected via a line input.
There are also several options for operation. The crossover frequency and level can be easily adjusted using the rotary control on the rear of the subwoofer. Pressing the control switches between the two functions; the currently selected value is indicated by coloured LEDs. Control is even easier and more clearly presented graphically using our free Nubert X-Remote app for iOS and Android. The programme's calibration function even allows the subwoofer to be optimally tuned to the room acoustics. Booming effects or ‘bass holes’ are reliably reduced. You can find out more about the mobile app in the box below.
This device can be paired with other X-platform products via the Nubert wireless standards X-Connect and X-Connect Surround.
Both standards transmit high-resolution sound data securely and with minimal latency. X-Connect transmits 2 channels at 192 kHz and 24 bits for maximum performance in stereo mode. X-Connect Surround, on the other hand, transmits up to 8 channels at 48 kHz and 24 bits to enable simple and elegant integration into multi-channel systems.
The speakers of the nuPro X and XS series and the ampX amplifier transmit in the X-Connect standard, as does the nuConnect trXS adapter. This adapter can also be used to integrate hi-fi and home cinema products from other manufacturers into the wireless network. The nuPro XS-8500 RC soundbase and the nuXinema preAV AV preamplifier transmit in the X-Connect Surround standard.
The models in our nuSub series can therefore be used to effortlessly expand stereo satellite speakers, soundboards and home cinema systems.
Design principle and housing
The nuSub XW-1200 is designed as an active bass reflex subwoofer in the so-called downfire design. This means that the chassis and bass reflex tubes radiate downwards. Solid feet with height-adjustable spikes ensure distance and horizontal stability. The special acoustic challenges of this design are mastered, among other things, by the clever use of a digital signal processor – more on this in the section ‘Control, app and room calibration’ below.
One of the advantages of the downfire design principle is its discreet appearance. With its even rectangular shape and gently rounded edges, the XW-1200 blends elegantly into virtually any interior design style. The connections and controls are discreetly located on the rear panel. The cabinet is made of robust and acoustically advantageous wood fibre material (MDF) and is finished with a high-quality silk matt lacquer.
Chassis
The nuSub XW-1200 uses a newly developed 32 cm chassis with a particularly long stroke. The inspiration and starting point was the driver of the legendary nuLine AW-1100, which was optimised for the requirements of this new subwoofer and the downfire design in the course of extensive testing. A wide, flexible surround enables particularly wide membrane deflections. The generously dimensioned drive with double magnet system is highly efficient and can generate enormous sound pressure levels with minimal distortion. To increase the load capacity in continuous use, all critical components have been thermally optimised. Final equalisation is performed by the integrated signal processor, which controls the chassis in the best possible way in every playback situation.
Amplifier module
The power amplifier in the nuSub woofers is based on the proven digital amplifiers in the nuPro series and offers the same high-quality signal processing and impressive efficiency. The power supply of the nuSub XW-1200 has been further developed and improved compared to the models in the nuSub XW-700 and 900 and provides significantly more impulse and continuous power. The output filters have also been adapted for the increased output power.
With 360 watts of nominal power and 420 watts of music power and maximum impulse fidelity, the nuSub XW-1200 delivers impressive bass performance in larger listening rooms. All settings are managed by the built-in digital signal processor (DSP).
Optional wireless operation
The subwoofers in the nuSub series have a line input that allows them to be connected to standard receivers and amplifiers with a sub output using a Y-cable. Alternatively, each subwoofer can also receive sound signals wirelessly. We recommend either our nuConnect ampX and nuXinema preAV amplifiers or a master speaker from the nuPro X and XS series (e.g. a nuPro XS-4000 or the nuPro XS-8500 soundbar) as transmitting stations. With the nuConnect trXS, we also offer a transmitter module that can be used to make conventional receivers fit for the wireless age. The wireless range is typically around 15 metres. The possibilities are endless!
Control, app and room calibration
As an alternative to the rotary control on the subwoofer, the system can also be operated using the free Nubert X-Remote app for iOS and Android. The app is particularly recommended for complex operating procedures, as it provides an overview of advanced functions such as setting the crossover frequency. The programme automatically adapts the menu interface to the features of the connected device. A speaker from the nuPro X series offers different functions than, for example, the nuConnect ampX integrated amplifier.
The app's advanced features include bass equalisation, which enables optimal low-frequency reproduction at the listening position and reliably minimises dreaded room modes. The application is very easy to use: Start the app, connect to the nuSub and navigate to the X-Room Calibration entry via the main menu at the top left. Now follow the instructions in the app to start the calibration. All you need to do is play and record the test signal (white noise) for a few seconds; the process is largely automatic. The smartphone or tablet then calculates the best possible tuning curve from the test signal played back and transmits it to the subwoofer's digital signal processor (DSP), where the calibration is permanently stored. The calibration can be stored in one of the preset slots, allowing you to compare the activated optimisation with the unmodified playback at any time. The X-Room Calibration function can be used in parallel with the other sound settings.
Please note: For technical reasons, calibration only works with current iOS devices without additional accessories. Android smartphones and tablets do not provide reliable measurement results due to the large number of microphones used with different parameters. The solution is the optional Nubert XRC Android Interface: a compact plug-in module that connects to the USB port (Type C) of the mobile device and provides the X-Remote app with access to a precise measurement microphone and a sophisticated analogue-to-digital converter. With this practical USB dongle, the measurement tone of the XRC system or the room response can be accurately recorded, after which the app can calculate the optimal correction curve and transfer it to the signal processor. Further information on the application can be found in the manual.
More information in Technik »satt«
For all technically interested music and home cinema enthusiasts who are not put off by hard facts and measurement details, Günther Nubert's ‘Technik satt’ offers a wealth of technical information and electroacoustic background knowledge, as well as covering the topic of sound optimisation and providing insights into the development and history of Nubert loudspeakers and devices.
