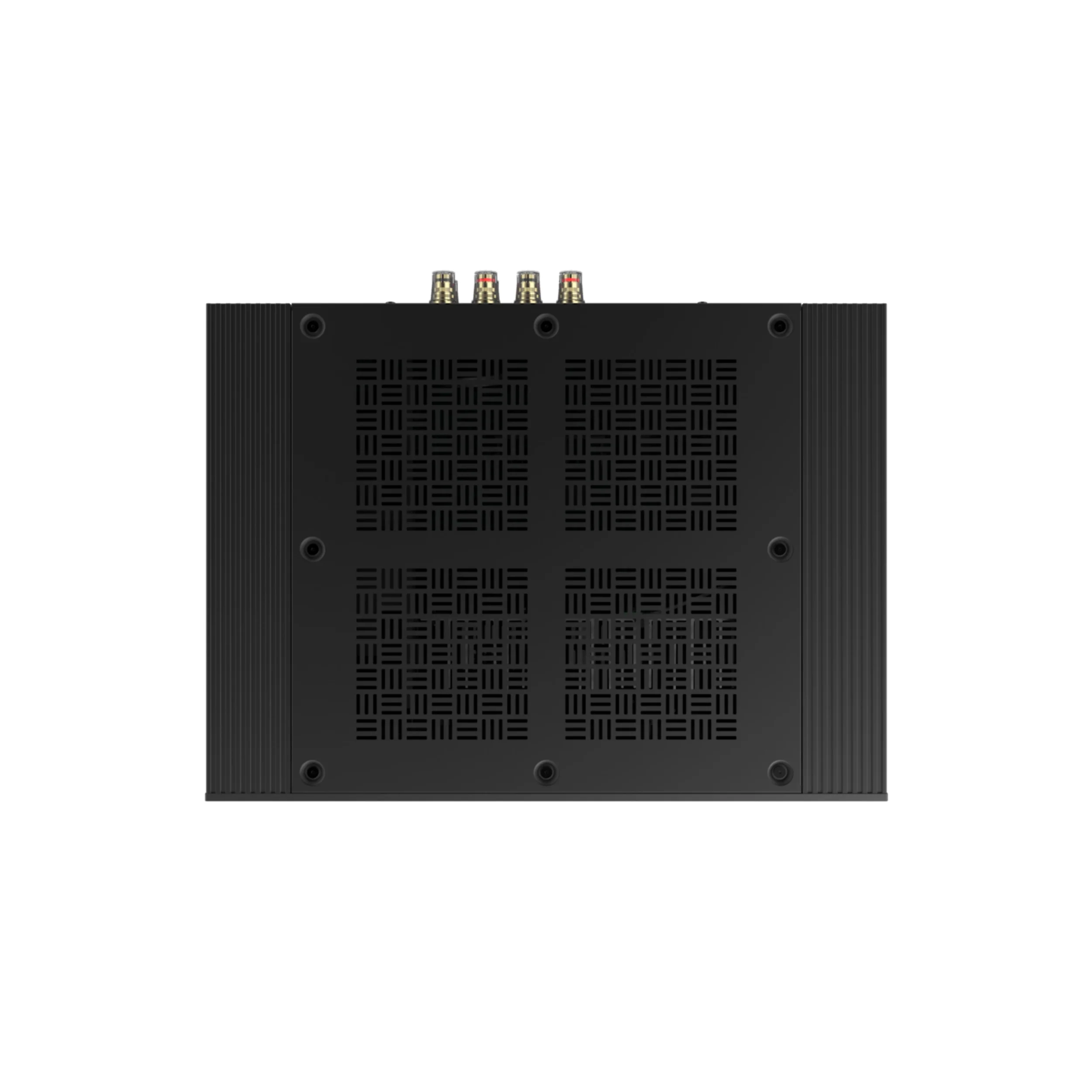

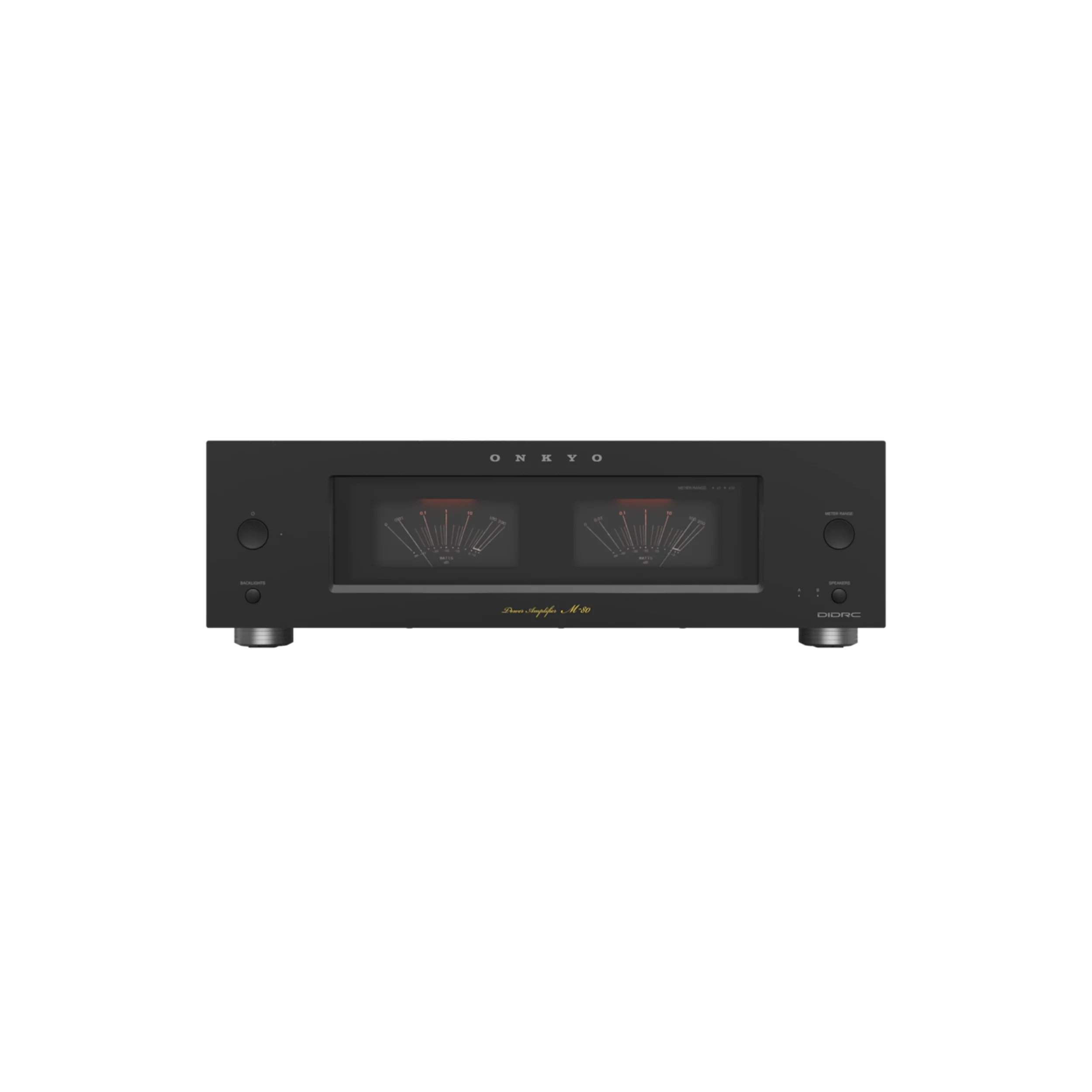

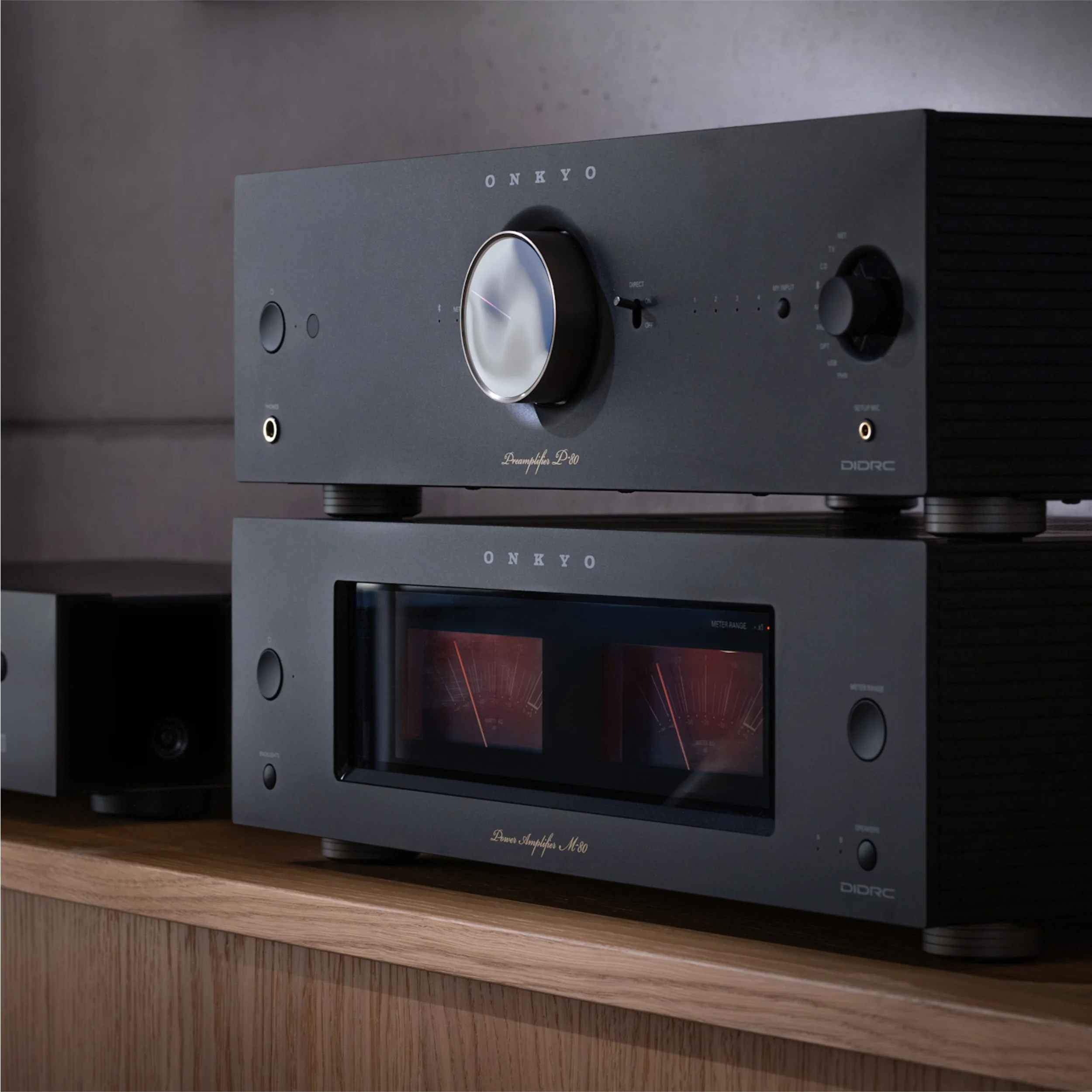

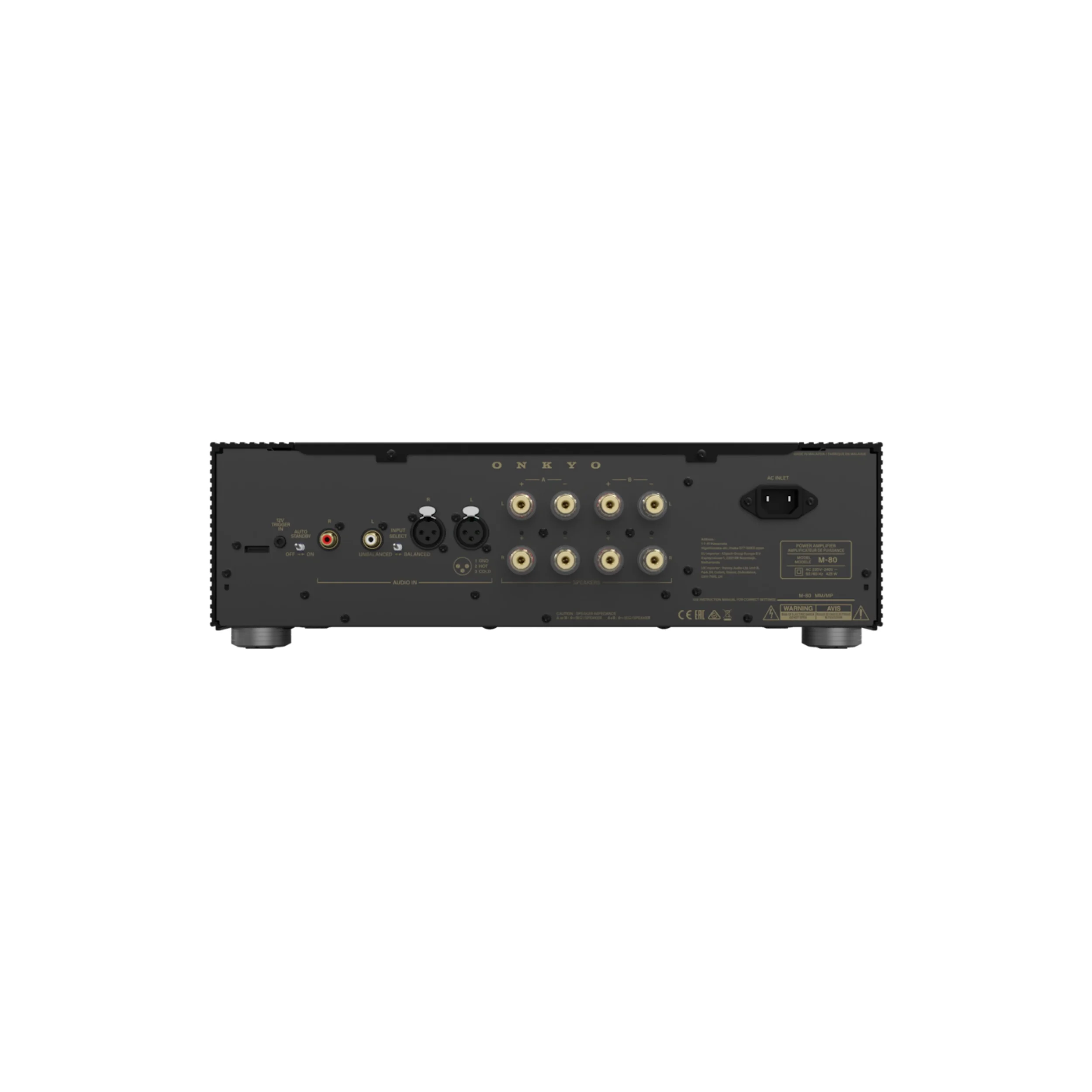

Onkyo M-80
Available, delivery time: 1-3 working days *
€1,599.00
07171 87 12 0
Product
Powering the music that moves you
The Onkyo M-80 power amplifier uses a three-stage inverted Darlington amplifier. This three-stage inverted Darlington amplifier has a very low output impedance and drives speakers with high current. The low NFB (negative feedback) also means that it is not affected by additional noise from the speaker, delivering a powerful yet high-resolution and informative sound. The transistors in the output stage of the M-80 are connected in parallel, providing excellent instantaneous power supply performance, further enhancing the sound rise and feeling of power. The driver stage of the M-80 amplifier uses DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry), which reduces noise in the ultra-high frequency band with its high slew rate design and helps to reproduce the natural sound of an analog record.
State-of-the-art components, fascinating reproduction
The Onkyo M-80 power amplifier features a specially designed high-current power supply for dynamic sound across the entire frequency range and an extruded aluminum heat sink that suppresses vibration. The use of high-quality 10,000-uF capacitors manufactured exclusively for Onkyo, hi-fi connectors (both speaker outputs and audio inputs), copper bus bars, and a robust, vibration-protected front panel ensure powerful, world-class playback.
The M-80 chassis consists of two aluminum side panels and a steel top plate. This three-piece chassis construction increases rigidity and improves earthquake resistance, resulting in improved overall sound quality.
Developed as the flagship of the Onkyo brand, the Icon series is not only an evolution of Onkyo's previous hi-fi products, but also the culmination of Onkyo's long-standing and ever-evolving sound technologies.
Source: www.onkyo.de
Safety Instructions
D&M Europe B.V.
Oude Stadsgracht 1, 5611 DD Eindhoven, Niederlande
Email: info@marantz.de
Read all operating and safety instructions for the product before use/operation and keep them for future reference. Use the product only for its intended purpose. Before operation, ensure the product is in perfect condition (visual inspection for external damage). Do not operate damaged products! If you have any questions or concerns, contact your retailer or trained, authorized personnel.
Warnings
Pay attention to all warnings on the product and in the product documentation!
Accessories
Use only accessories recommended by the manufacturer or those approved and suitable for the intended purpose.
Cables, Contacts, Connectors, and Accessories
Use cables and cable accessories only for their designated purpose. Ensure that cables, connectors, and distributors are not electrically or mechanically overloaded. Avoid bending or damaging cables during connection and routing. Ensure all connections are securely and safely installed. Replace damaged or defective cables and connectors immediately!
Power Supply
Electrical devices must only be operated using the power supply specified on the product or in the user manual. Protected devices may only be connected to approved grounded outlets. (If necessary, consult your retailer or power provider for the correct voltage and frequency).
Incoming Connections
When connecting electrical devices to external antennas or signal cables (e.g., Internet, antenna), proper grounding and lightning protection must be ensured. Disconnect all cable connections during extended periods of non-use (e.g., vacation).
Operating Location
Do not operate electrical devices, including accessories, in damp rooms or near water (e.g., bathtub, swimming pool, damp rooms, outdoors, etc.). Ensure adequate ventilation and appropriate ambient temperature when operating electrical devices. Make sure that existing ventilation openings and cooling elements are not covered and that there are no heat sources nearby. Place the product on a stable and secure surface to prevent it from falling or tipping over. For permanent installation, use only manufacturer-recommended mounting accessories and ensure professional installation (if necessary, by trained personnel). Ensure that the product cannot harm anyone. For powered devices, there is a risk of electric shock! Some products, such as amplifiers, can develop high temperatures, potentially causing burns or damage. Be especially cautious around children and pets!
Foreign Objects
Ensure that no solid or liquid foreign objects can enter the product.
Maintenance and Repairs
Have necessary maintenance and repairs carried out exclusively by trained and authorized personnel. If malfunctions occur, liquids or foreign objects enter the product, or the product experiences strong mechanical stress (e.g., falling), or if a defect is suspected, have the product inspected by qualified personnel.
Spare and Wear Parts
Ensure that only original or approved and suitable spare and wear parts are used.
Volume
Excessive volume/sound pressure can cause hearing damage or even loss. Use all audio products only at appropriate listening levels.
Batteries and Accumulators
Never store batteries or accumulators in flammable areas. Dispose of batteries and accumulators only in accordance with legal regulations.
Product Disposal
Dispose of the product only in accordance with legal regulations.
Accessories
We offer not only a wide range of HiFi equipment, but also the appropriate accessories.
Content: 3 Meter (€99.67 / 1 Meter)
Recommendations
We have many combinations of HiFi devices in our stores in test, our recommendation harmonize in the best possible way. Promised!
Downloads
Technical Information
| Device type: | Stereo power amplifier |
|---|---|
| Width: | 43,5 cm |
| Height: | 13,5 cm |
| Depth: | 34,5 cm |
| Weight: | 13,5 kg |
| Shipping weight: | 16,5 kg |
| Power consumption in standby mode: | 0,3 W |
| Maximum power input: | 445 W |
| Standard colour: | Black |
| Color: | Black |
| Scope of delivery: | M-80, power cable, 1.8 m trigger cable, instructions |
| Min - Max impedance: | 4-16 Ohm |
| Continuous power: | 140 watts per channel into 4 ohms |
| Pulse power: | 200 W per channel into 4 ohms / 150 W per channel into 8 ohms |
| Channels: | 2 |
| XLR inputs: | 1 |
| Audio cinch inputs: | 1 |
| Trigger inputs: | 1x 12 V mini-jack |
