Rotel A 12 MK II

The gateway to advancement

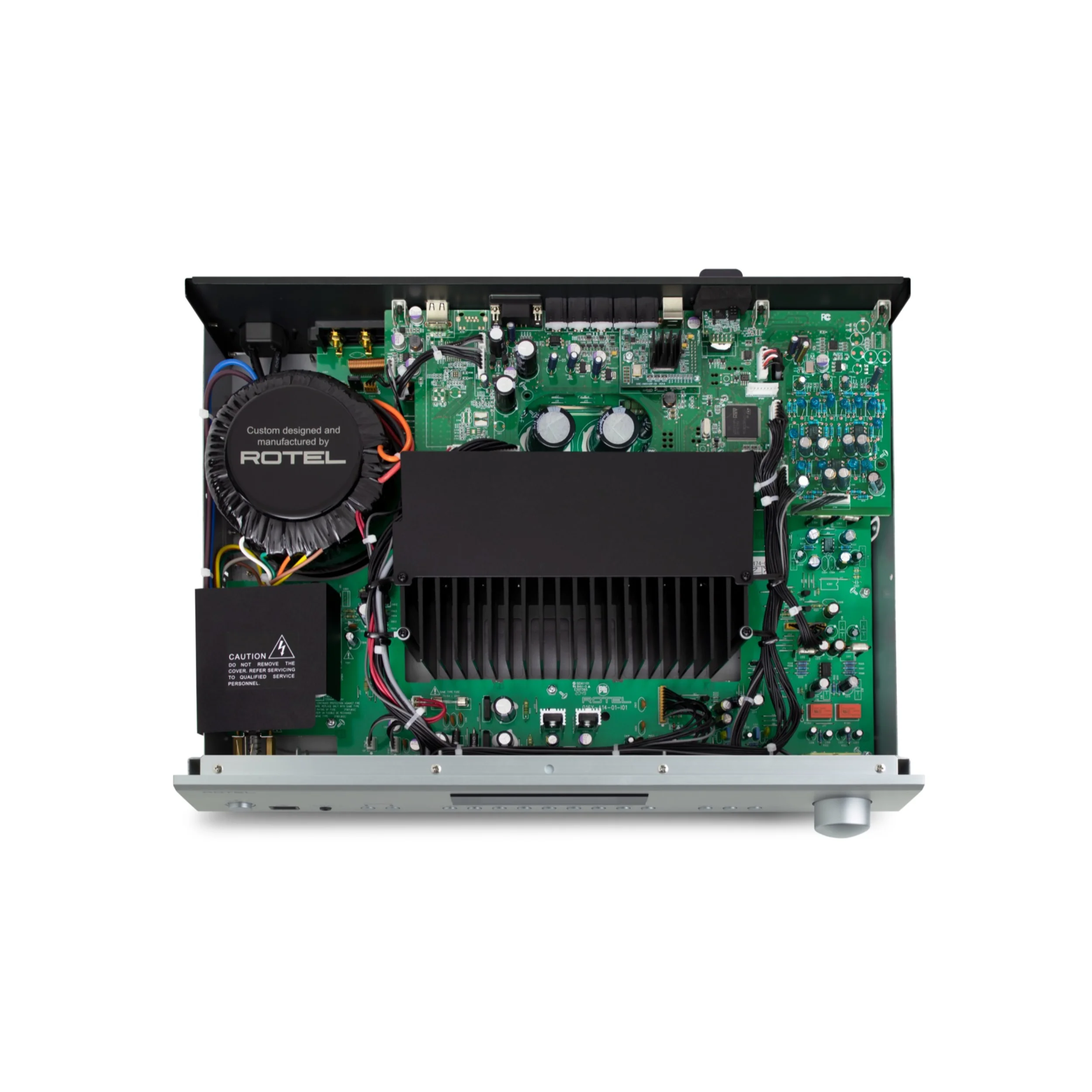

Despite its slim design, the A12MKII integrated amplifier offers more than you would expect at first glance. With its oversized toroidal transformer from in-house production, the A12MKII delivers a clean, dynamic Class AB output signal with 60 watts into 8 ohms. A moving magnet phono input, four analog RCA inputs, four digital inputs, PC USB, and high-quality wireless aptX™ Bluetooth are also included.

A moving magnet phono input, four analog RCA inputs, four digital inputs, PC USB, and high-quality wireless aptX™ Bluetooth ensure that you can connect all your favorite sources. The premium 32-bit D/A converter from Texas Instruments with its optimized circuitry brings out even the finest details in the music and preserves the integrity of the audio signal. The slim and powerful A12MKII is fully in line with Rotel's brand tradition. The A12MKII delivers a clean, dynamic Class AB output signal with 60 watts into 8 ohms.

The slim and powerful A12MKII is fully in line with the Rotel brand tradition. Connections

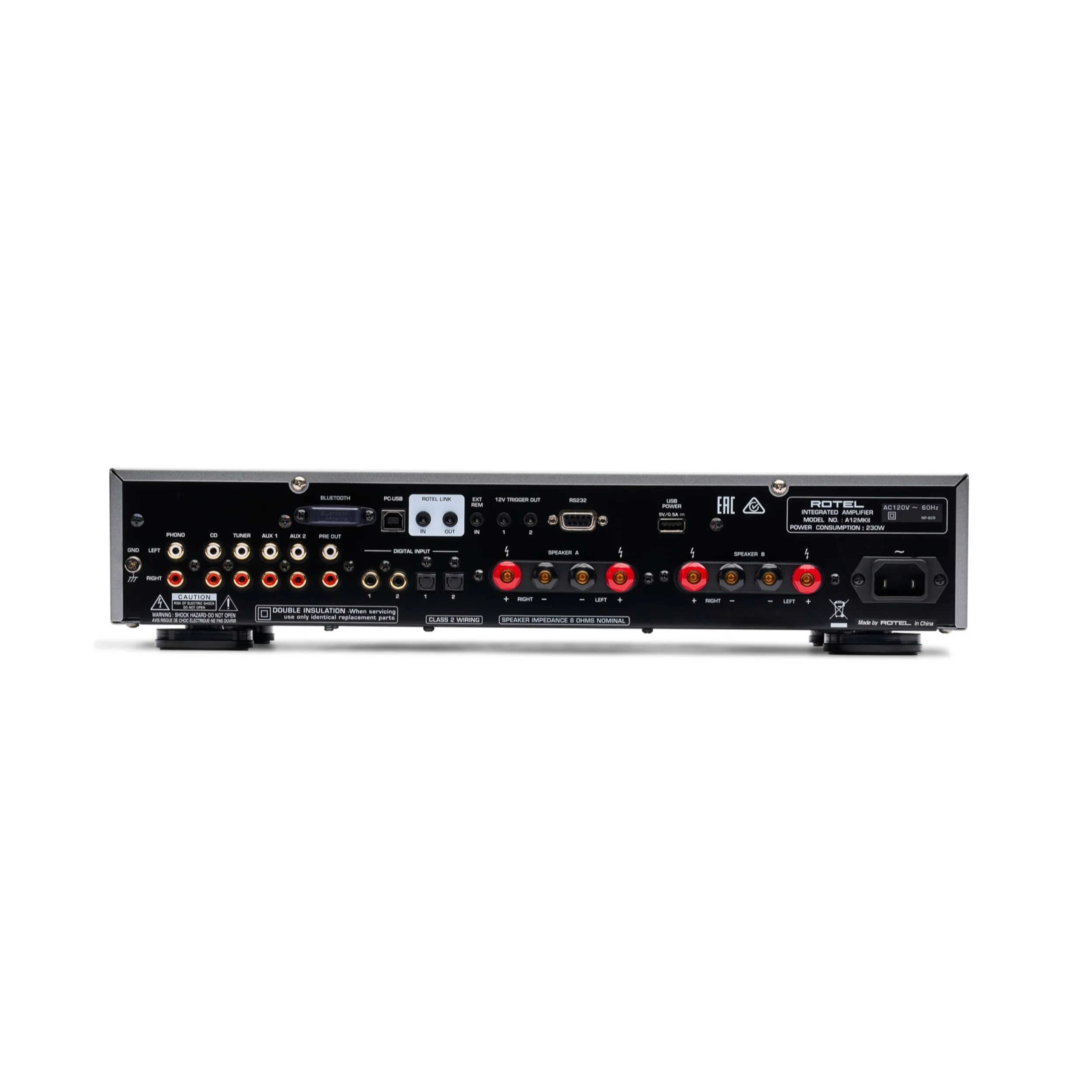

Connections

• Bluetooth® with aptX™ HD and AAC
• Analog inputs
• 1× Phono MM in RCA/cinch
• 4× Line in RCA/cinch
• Digital inputs
• 1× USB-B
• 2× S/PDIF coaxial
• 2× S/PDIF optical
• Output
• 1× Pre Out RCA/Cinch
• 2× speaker outputs (A+B) for banana plugs and spade connectors
• 1× USB-A power
• 2× 12 V trigger connections
• 1× RS232 control port
• 2× Rotel Link
• 1× input for external remote control

Technical

• Max. power: 120 W / channel (4 Ω)
• Continuous power: 60 W / channel (8 Ω)
• Distortion factor: < 0.018%
• Frequency response:
  High-level inputs: 10 Hz – 100 kHz, ±0.5 dB
  Digital inputs: 10 Hz – 90 kHz, ±2 dB
  Phono input: 20 Hz – 20 kHz, ±0.5 dB
• Signal-to-noise ratio (IHF A):
  High-level inputs: 100 dB
  Digital inputs: 103 dB
  Phono input: 90 dB
• Dimensions (W × H × D): 430 × 93 × 345 mm
• Power consumption during operation: 230 W
• Power consumption in standby mode: < 0.5 W
• Weight: 8.8 kg
